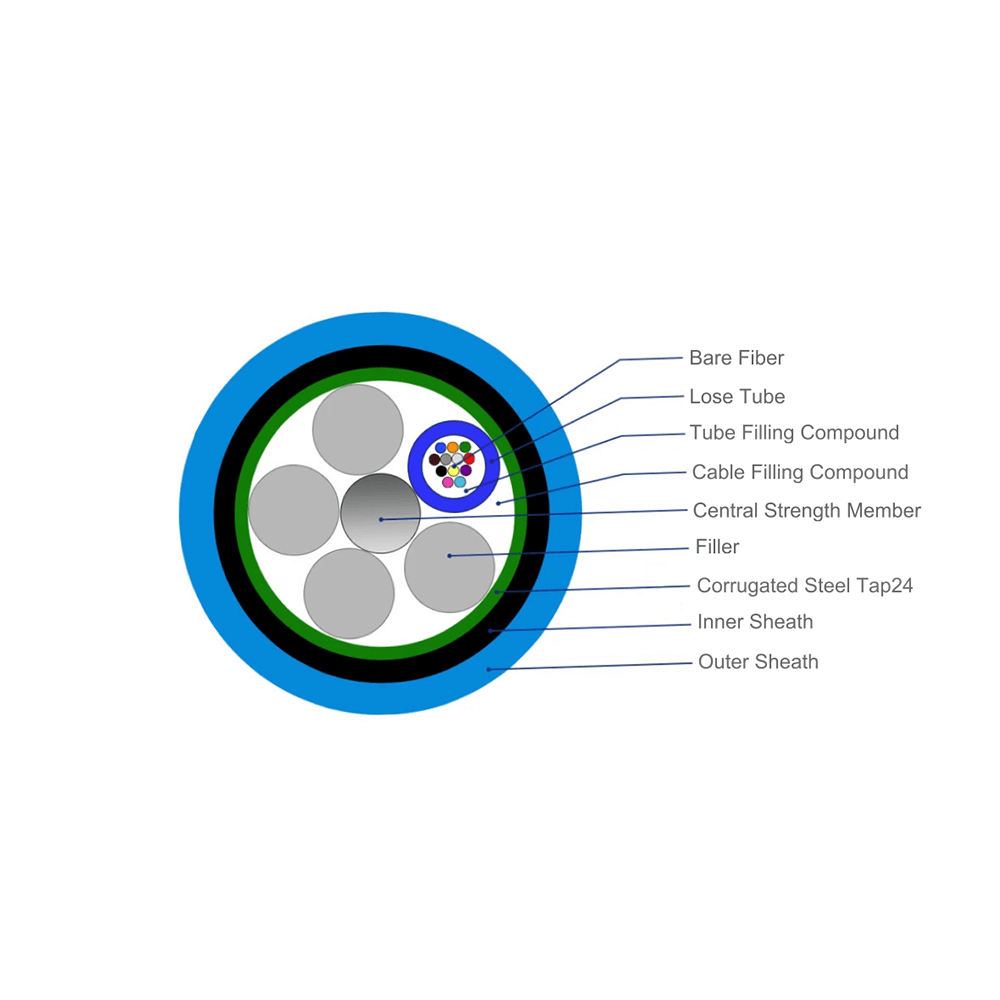

MGTSV

Mining Applied Fire Resistant Cable

The MGTSV mining optical cable not only inherits all the performance of optical fiber cables, but also adds flame retardant, rodent proof and other characteristics due to the special requirements of the coal mining industry (in special mining environments) to ensure smooth communication and reduce losses.

GET A QUOTE

DataSheet Download

Fiber Parameter

Single Mode Fiber
			Unit	G.652D	G657A1	G657A2
Cladding Diameter			μm	125±1.0	125±0.7	125±0.7
Cladding non-circularity			%	≤ 1.0	≤ 0.7	≤ 0.7
Core-cladding Concentricity Error			μm	≤ 0.6	≤ 0.5	≤ 0.5
Coating Diameter			μm	245±7	245±5	245±5
Coating non-circularity			%	≤ 6.0	≤ 6.0	≤ 6.0
Cladding-coating concentricity error			μm	≤ 12.0	≤ 12.0	≤ 12.0
Cable Cutoff Wavelength (λcc)			nm	≤ 1260	≤ 1260	≤ 1260
Mode Field Diameter		1310nm	μm	≤ 0.4	≤ 0.4	≤ 0.4
Mode Field Diameter		1550nm	μm	≤ 0.3	≤ 0.3	≤ 0.3
Multimode Fiber
		Unit	62.5/125	50/125	OM3	OM4
Core Diameter		μm	62.5±2.5	50±2.5	50±2.5	50±2.5
Cladding Diameter		μm	125±1.0	125±1.0	125±1.0	125±1.0
Core Non-circularity		%	≤ 5.0	≤ 5.0	≤ 5.0	≤ 5.0
Cladding Non-circularity		%	≤ 1.0	≤ 1.0	≤ 1.0	≤ 1.0
Core-cladding Concentricity Error		μm	≤ 1.5	≤ 1.5	≤ 1.0	≤ 1.0
Coating Diameter		μm	245±7	245±7	245±7	245±7
Coating Non-circularity		%	≤ 6.0	≤ 6.0	≤ 6.0	≤ 6.0
Cladding-coating Concentricity Error		μm	≤ 12.0	≤ 12.0	≤ 12.0	≤ 12.0
OFL Bandwidth	850nm	MHz·km	≥ 160	≥ 500	≥ 1500	≥ 3500
OFL Bandwidth	1300nm	MHz·km	≥ 500	≥ 500	≥ 500	≥ 500

Color Coding

Bare Fiber	IEC Standard fiber color coding: Blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, aqua Note: ① When the optical fibers in each loose tube is less than 12, they will be colored from the first color (blue) in sequence; ② The fiber color coding can be customized
Loose tube	Standard telecom industry color coding: Blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, aqua T Mark Color Code: Red/Green (from red to green is the arrangement direction of the loose tube) Note: IEC TR 63194:2019 Annex E.2 is the default color coding standard. Color customization is available too.)

Mechanical & Environmental Characteristics

Fiber Count	Tube & Filler	Cable OD (mm)	Cable G.W. (kg/km)	Tensile Resistance (N) Long/Short Term	Crush Resistance（N/100mm） Long/Short Term	Bending Radius (mm) Static/Dynamic


12~60	5	12.2	156	1000/2000	500/1500	15D/30D
72	6	13.8	210	1750/3500	500/1500	15D/30D
96	8	15.1	242	1750/3500	500/1500	15D/30D
120	10	17.2	280	1750/3500	500/1500	15D/30D
144	12	19.0	320	1750/3500	500/1500	15D/30D
