MPO Adapter

The MPO adapter is applied to the connecting and fixing between MPO connectors. After its key groove fits with key of MPO connector, and the guide pins of male MPO connector is aligned with the holes of female MPO connector, MPO adapter will lock them inside to ensure their stable performance.

GET A QUOTE

DataSheet Download

Product Highlight

Compatible with MPO, MTP connectors
Capacity 8 fibers, 12 fibers, 16 fibers, 24 fibers
Low loss and high reliability

Standard Compliance

Compliant with RoHS
Compliant with TIA/EIA certification
Compliance with IEC standards

Application

Optical communication system
CATV
Data center

Specification

Item	Parameter
Fiber Count	12 fibers, 16 fibers, 24 fibers
Housing Color	Black, Green, Aqua, Violet
Housing Material	PEI

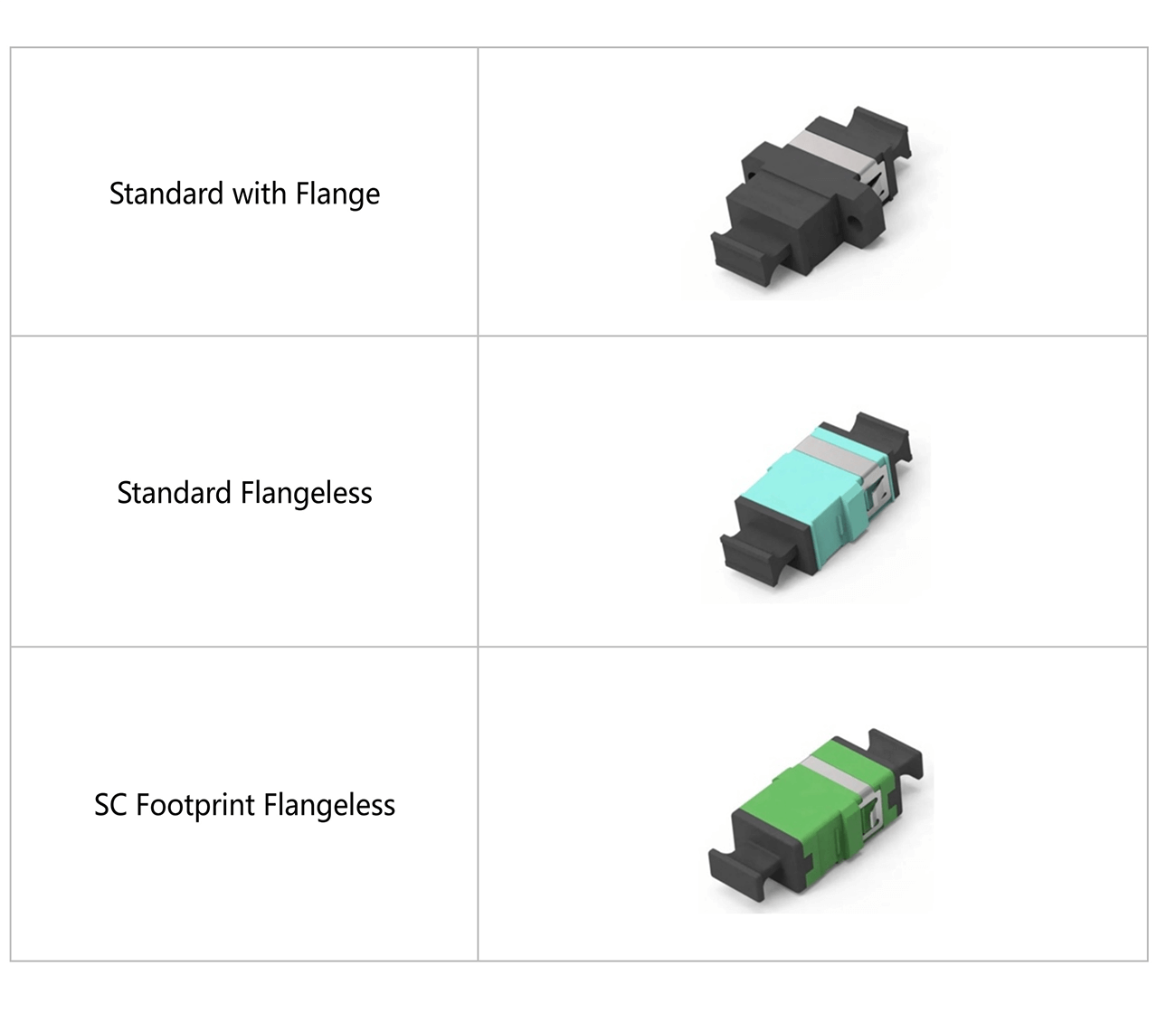

Flange	Flanged, Flangeless
Insertion Loss	≤ 0.7dB, typical ≤ 0.5dB
Operating Temperature	-40℃ ～ +75℃

Ordering Information
