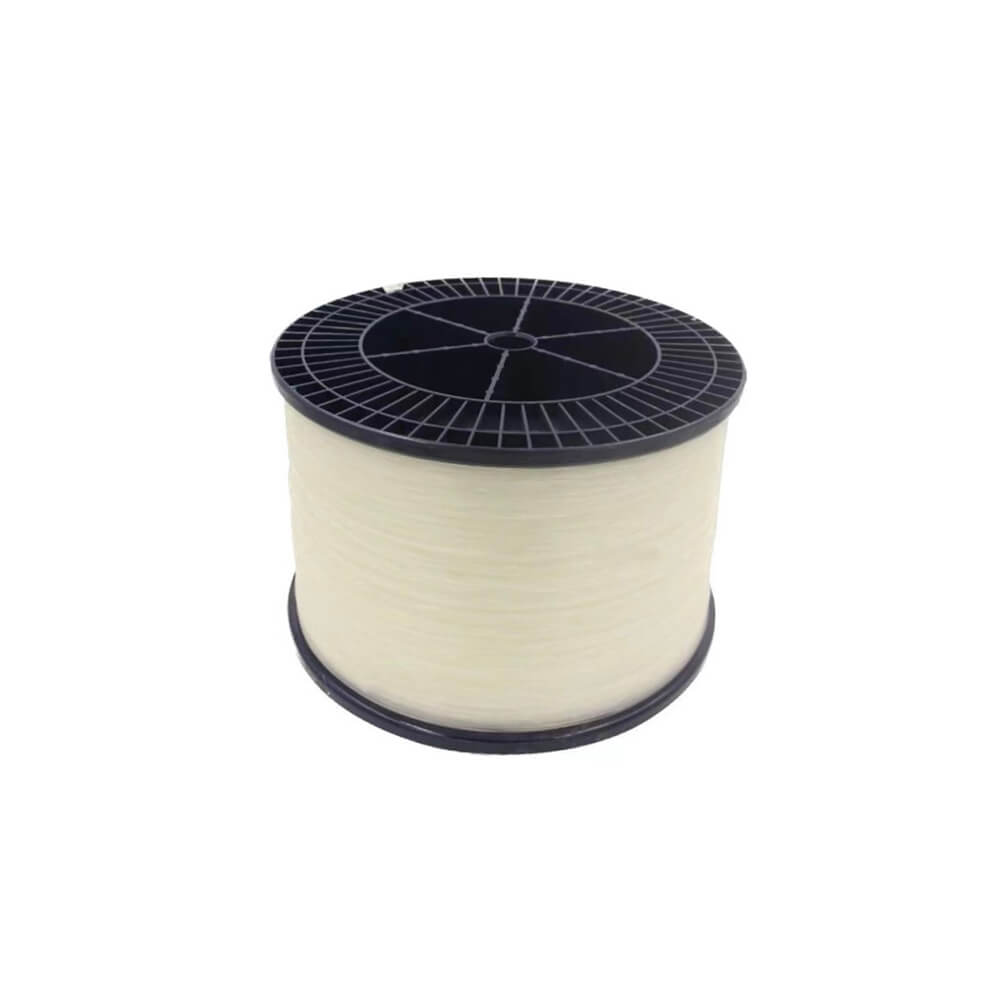

The invisible optical cable is applicable when users do not accept the drop optical cable or there is difficulty of installation, especially in old residential areas and office places. The almost transparent appearance of the cable persists the indoor beauty. The installation works can be completed only by hand-held heating installation tools.
| Cable | Fiber Count | Cable OD (mm) | Cable G.W. (kg/km) | Tensile Resistance (N) Long/Short Term |
Crush Resistance （N/100mm） Long/Short Term |
Bending Radius (mm) Static/Dynamic |

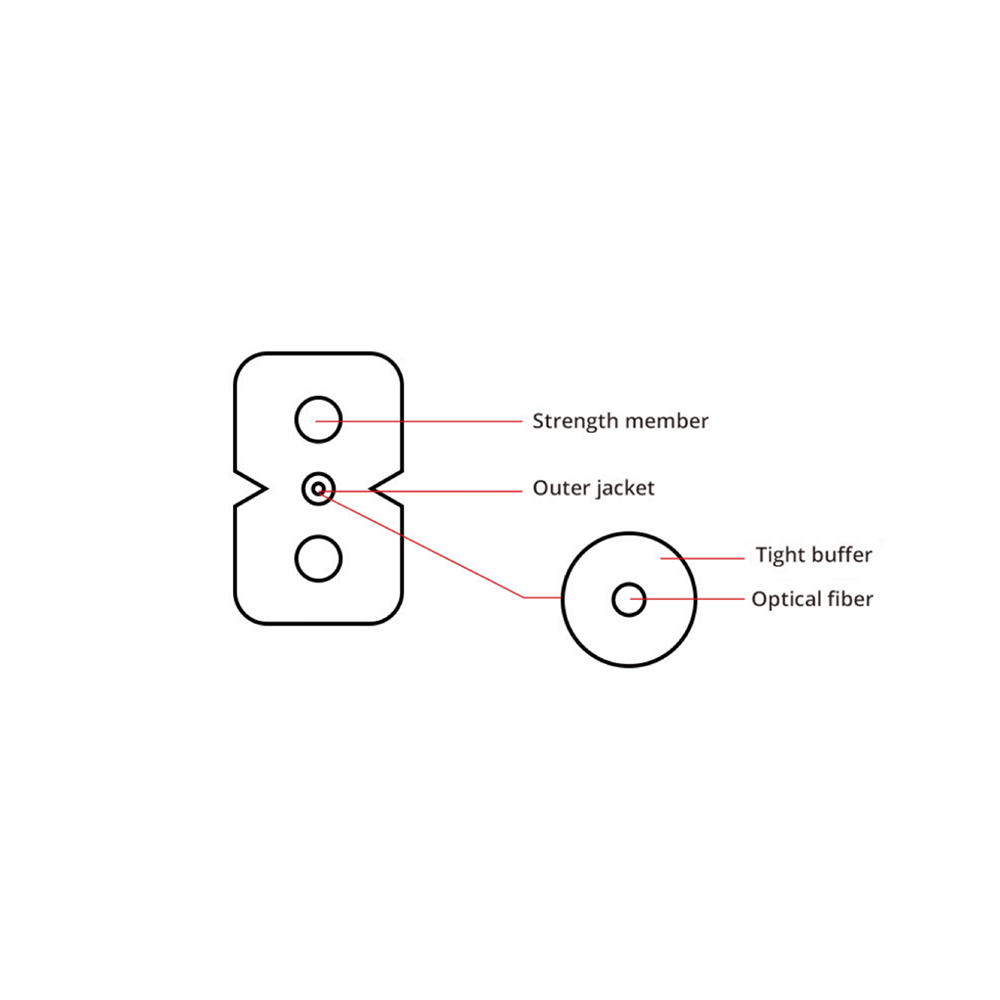

| GJXFH | 1 | 1.6*2.0 | 4.5 | 8/14 | 500/1000 | 15D/30D |
| GJXJH | 1 | 2.0*3.0 | 7.9 | 100/200 | 1000/2200 | 15D/30D |

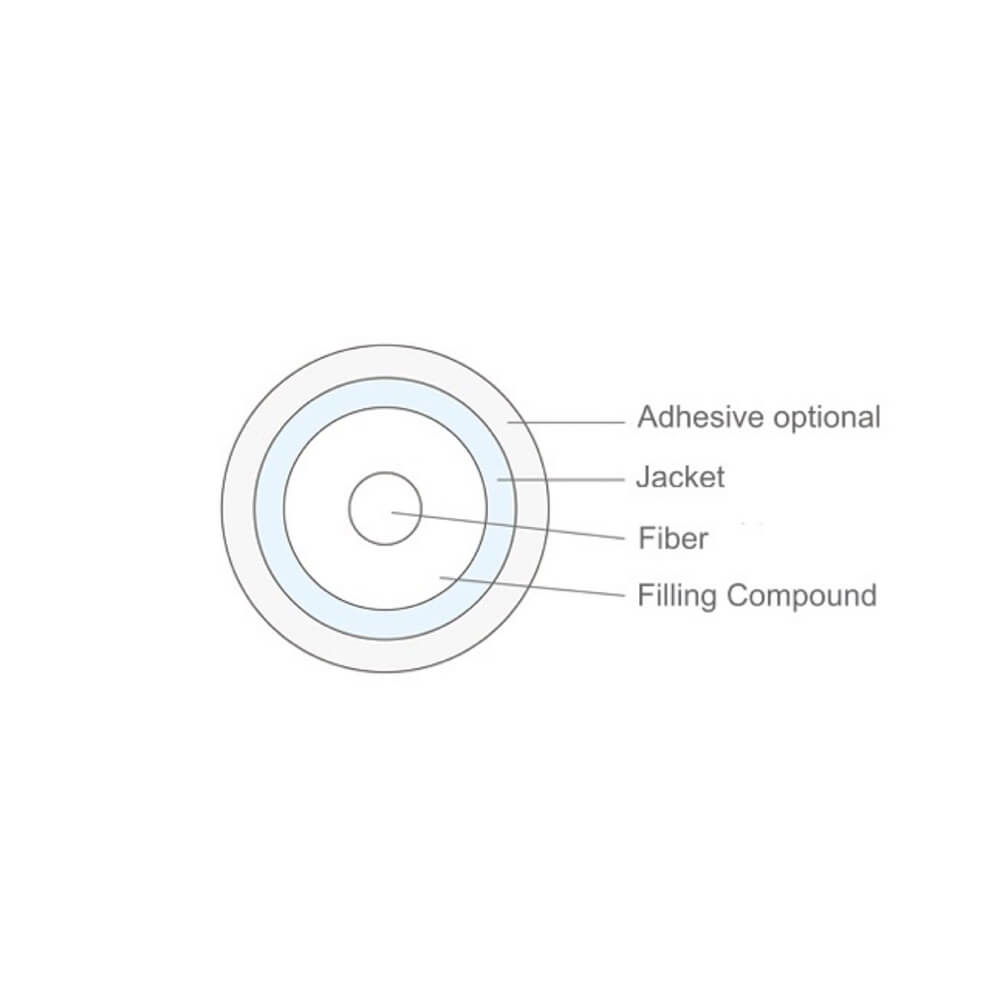

| GJI | 1 | 0.9 | 0.7 | 20/50 | 20/50 | 7.5/15 |
| GJI | 1 | 1.2 | 1.2 | 20/50 | 20/50 | 7.5/15 |
| Single Mode Fiber | ||||||
| Unit | G.652D | G657A1 | G657A2 | |||
| Cladding Diameter | μm | 125±1.0 | 125±0.7 | 125±0.7 | ||
| Cladding non-circularity | % | ≤ 1.0 | ≤ 0.7 | ≤ 0.7 | ||
| Core-cladding Concentricity Error | μm | ≤ 0.6 | ≤ 0.5 | ≤ 0.5 | ||
| Coating Diameter | μm | 245±7 | 245±5 | 245±5 | ||
| Coating non-circularity | % | ≤ 6.0 | ≤ 6.0 | ≤ 6.0 | ||
| Cladding-coating concentricity error | μm | ≤ 12.0 | ≤ 12.0 | ≤ 12.0 | ||
| Cable Cutoff Wavelength (λcc) | nm | ≤ 1260 | ≤ 1260 | ≤ 1260 | ||
| Mode Field Diameter | 1310nm | μm | ≤ 0.4 | ≤ 0.4 | ≤ 0.4 | |
| 1550nm | μm | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ||
| Multimode Fiber | ||||||
| Unit | 62.5/125 | 50/125 | OM3 | OM4 | ||
| Core Diameter | μm | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | |
| Cladding Diameter | μm | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | |
| Core Non-circularity | % | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 | |
| Cladding Non-circularity | % | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | |
| Core-cladding Concentricity Error | μm | ≤ 1.5 | ≤ 1.5 | ≤ 1.0 | ≤ 1.0 | |
| Coating Diameter | μm | 245±7 | 245±7 | 245±7 | 245±7 | |
| Coating Non-circularity | % | ≤ 6.0 | ≤ 6.0 | ≤ 6.0 | ≤ 6.0 | |
| Cladding-coating Concentricity Error | μm | ≤ 12.0 | ≤ 12.0 | ≤ 12.0 | ≤ 12.0 | |
| OFL Bandwidth | 850nm | MHz·km | ≥ 160 | ≥ 500 | ≥ 1500 | ≥ 3500 |
| 1300nm | MHz·km | ≥ 500 | ≥ 500 | ≥ 500 | ≥ 500 | |
| Bare Fiber | IEC Standard fiber color coding: Blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, aqua Note: ① When the optical fibers in each loose tube is less than 12, they will be colored from the first color (blue) in sequence; ② The fiber color coding can be customized |
| Loose tube | Standard telecom industry color coding: Blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, aqua T Mark Color Code: Red/Green (from red to green is the arrangement direction of the loose tube) Note: IEC TR 63194:2019 Annex E.2 is the default color coding standard. Color customization is available too.) |
