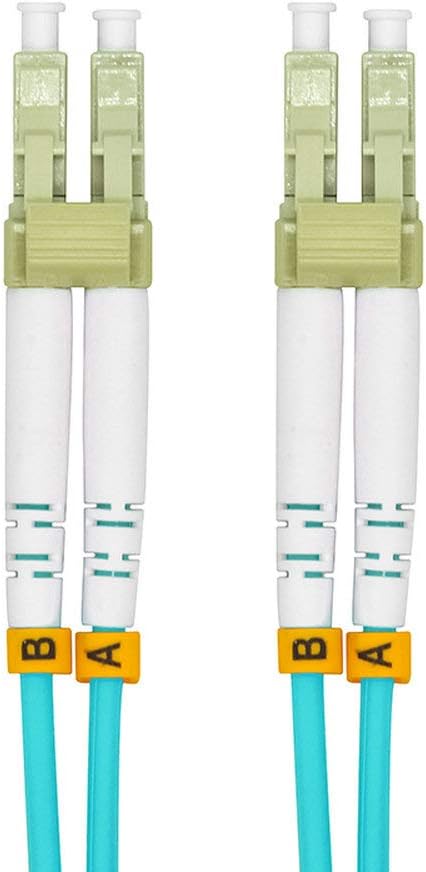

Duplex LC Patch Cord

LC patch cord has LC connector on the both ends of the fiber optical cable, and bend insensitive fiber inside of the cable. It has low attenuation when the patch cord is bent, twisted or installed in small space. And LC patch cord can save ore space for high density cabling, like in data center, IDC, enterprise networking etc.
FTTMAX can provide the fiber optical patch cord compliant with OS2, OM1, OM2, OM3, OM4 and OM5 standards, and can be applied to Gigabit Ethernet, 10 Gigabit Ethernet and high speed fiber channel application.
All the patch cord from FTTMAX is tested and measured before delivery, and compliant with TIA604 (FOCIS), IEC 61754 and YD/T industry standards.

GET A QUOTE

DataSheet Download

Product Highlight

Precision Zirconia ferrule to guarantee low loss
Bend insensitive fiber
Flame-retardant Jacket
Locking latch connector retention mechanism
Compliant to TIA-604 (FOCIS)

Standard Compliance

Compliant with TIA/EIA
Compliant with RoHS
Compliant with latest IEC standard

Specification

Item	Parameter
Fiber Count	Duplex
Fiber Mode	Single mode: 9/125um, OS2 G652D G657 Multimode: 50/125um, OM2, OM3, OM4, OM5, 62.5/125um, OM1
Fiber Grade	Single mode: OS2, ITU-T G.652D., ITU-T G.657 Multimode: ITU-T G.651, OM2, OM3, OM4, OM5, OM1
Cable Diameter	0.9mm, 2.0mm, 3.0mm
Flame Retardant	Riser (OFNR), Plenum (OFNP)
Jacket Material	PVC, LSZH, TPU

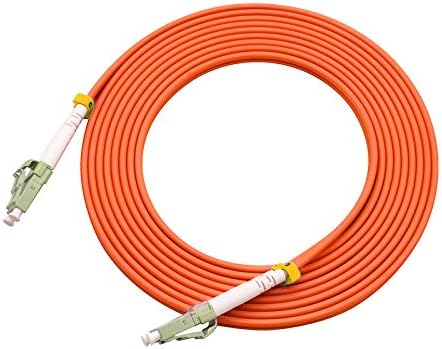

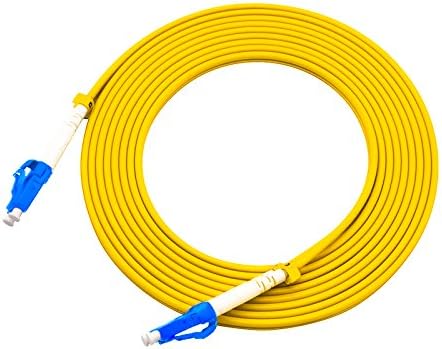

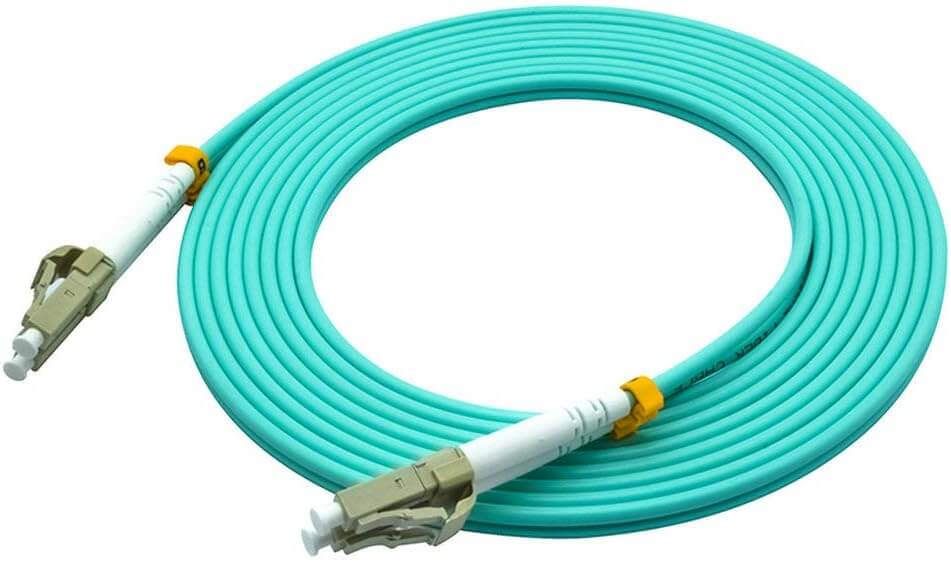

Jacket Color	OS2 G657: Yellow OM1 Orange, OM2 Orange, OM3 Aqua, OM4 Magenta, OM5 Lime Green
Connector Type	LC to SC/MU/SC/FC/ST/E2000
Physical Contact	APC, UPC
Insertion Loss	≤ 0.3dB / ≤ 0.2dB / ≤ 0.15dB
Return Loss	SM UPC ≥ 50dB, APC ≥ 60dB; MM PC ≥ 25dB
Operating Temperature	-20 °C ~ +70 °C
Storage Temperature	-40 °C ~ +85 °C

Max. Transmittion Distance

Fiber Mode
Fiber Mode		Fast Ethernet 100Base-FX	1Gb Ethernet 1000Base-SX	1Gb Ethernet 1000Base-LX	10Gb Base SE-SR	25Gb Base SR-S	40Gb Base SR4	100Gb Base SR10
Single Mode	OS2	200m	5000m	5000m	10km	/	/	/
Multimode	OM1	200m	275m	550m	/	/	/	/
	OM2	200m	550m	550m	/	/	/	/
	OM3	200m	550m	550m	300m	70m	100m	100m
	OM4	200m	550m	550m	400m	100m	150m	150m
	OM5	200m	550m	550m	300m	100m	400m	400m
