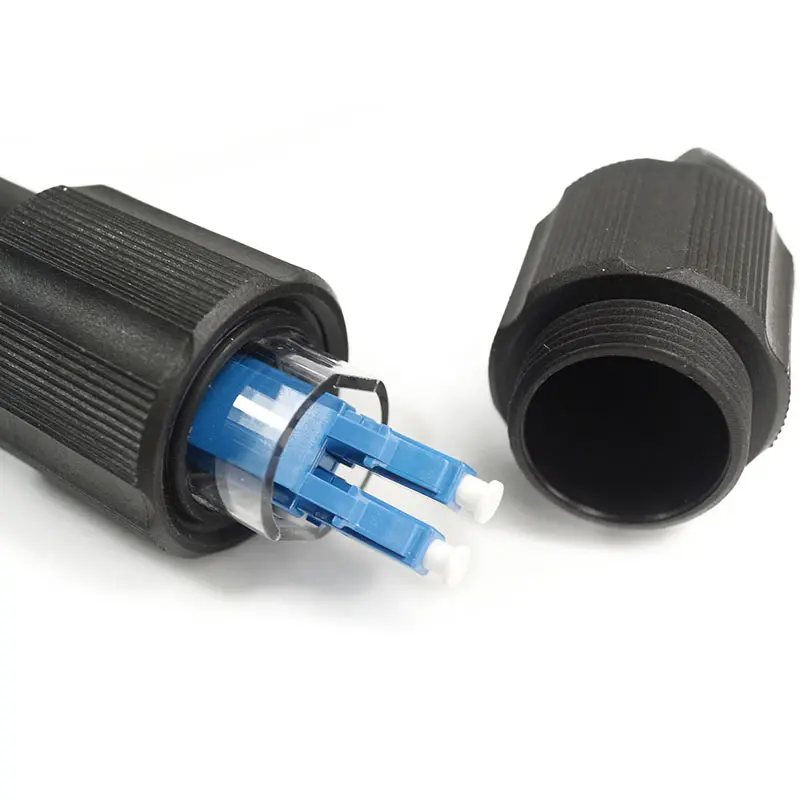

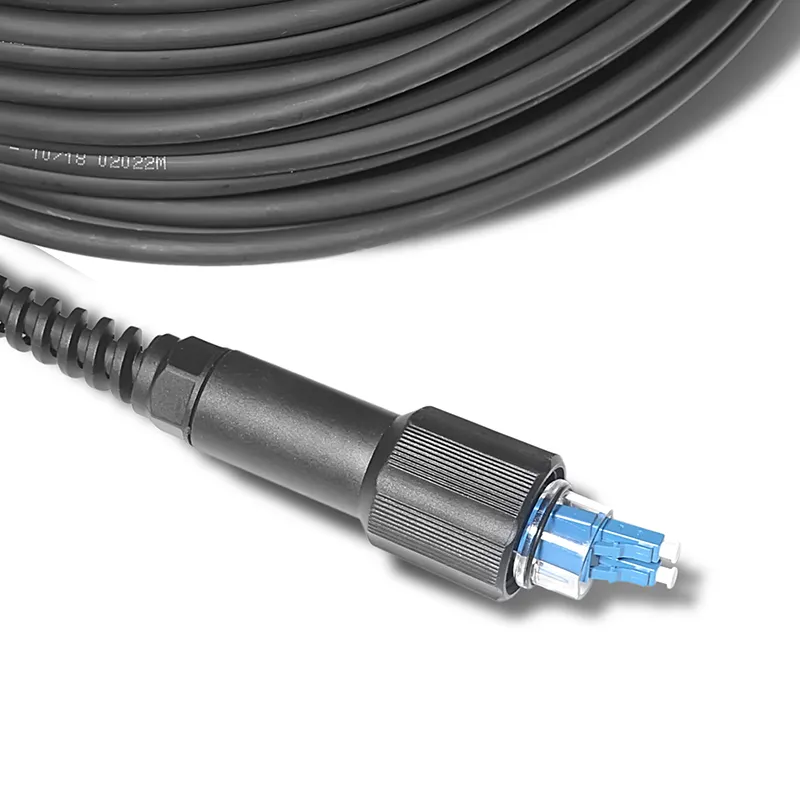

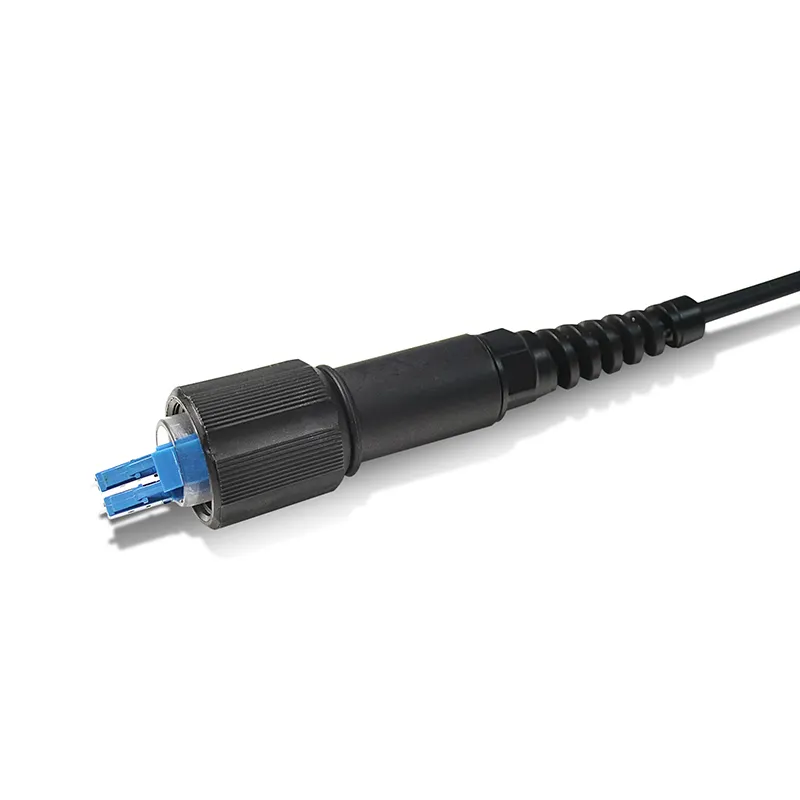

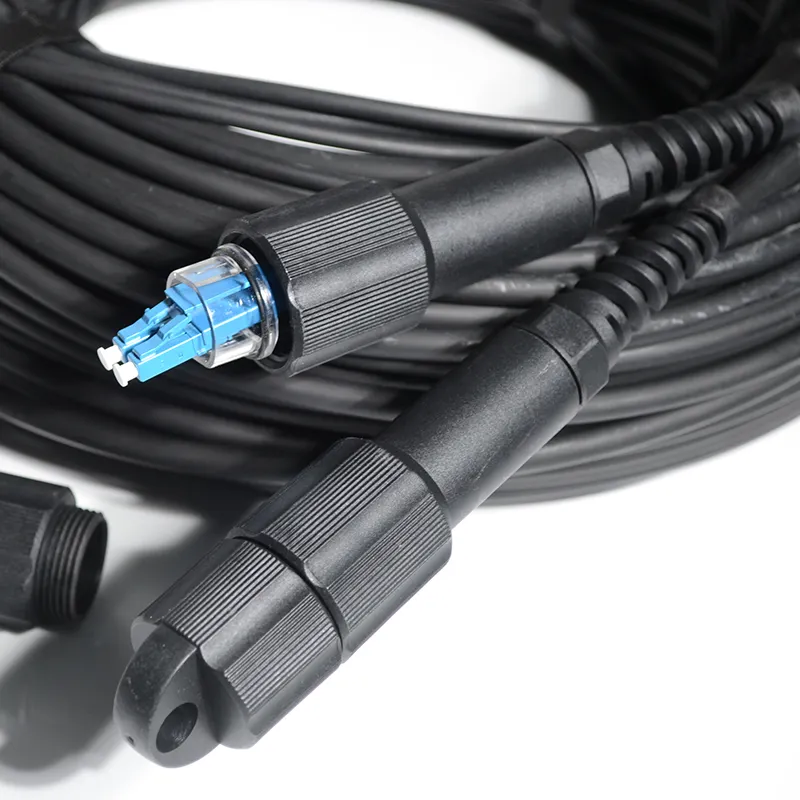

PDLC Pre-terminated Assembly

PDLC pre-terminated assembly is the reasonable interface for 4G, 5G and wireless base stations, such as remote wireless, optical fiber to antenna, etc. This product is not only suitable for these fields, but also for industrial, aerospace, national defense and other fields. The cable assembled by PDLC has been tested by salt spray. The waterproof grade reaches IP67. It is easy to install and transmit reliable data over a long distance under harsh environment.

GET A QUOTE

DataSheet Download

Application

Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications

Features

Easy to install for the future expansion
Factory-assembled cables for a fast on-site installation
IP67 water and dust protection
Flexibility with small bending radius and excellent cable routing properties
Equipped with customer specific power and fiber optic connectors

Mechanical Performance

Item	Data
Durability	≥ 500 mating
Ingress	IP67
Operation Temperature	-40 ~+80℃

Optical Performance

Item	Data
Insertion Loss	Typ. 0.15dB, Max≤ 0.3dB
Return Loss	APC ≥ 60dB, UPC ≥ 50dB, MM ≥ 20dB

Applicable Cable

LC DX	RRH Cable: OD 7.0mm
	Armored Cable: OD 7.0mm
