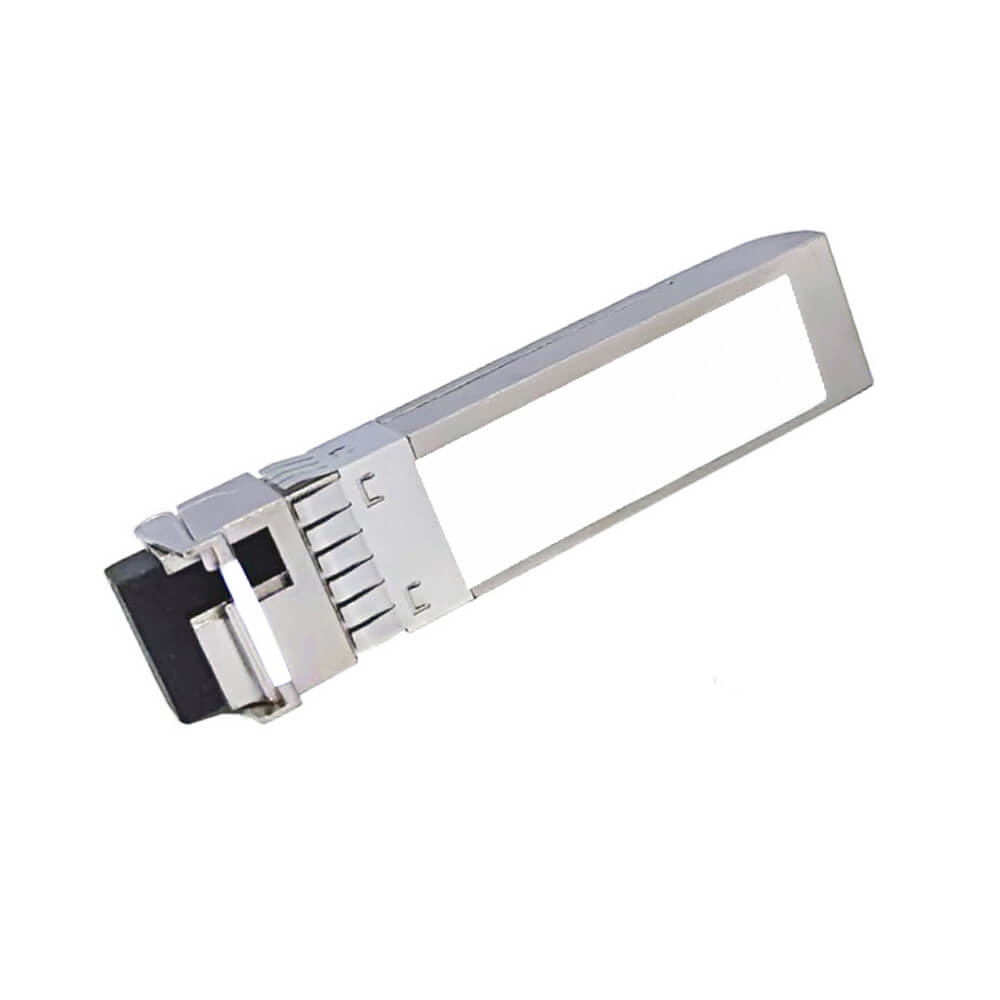

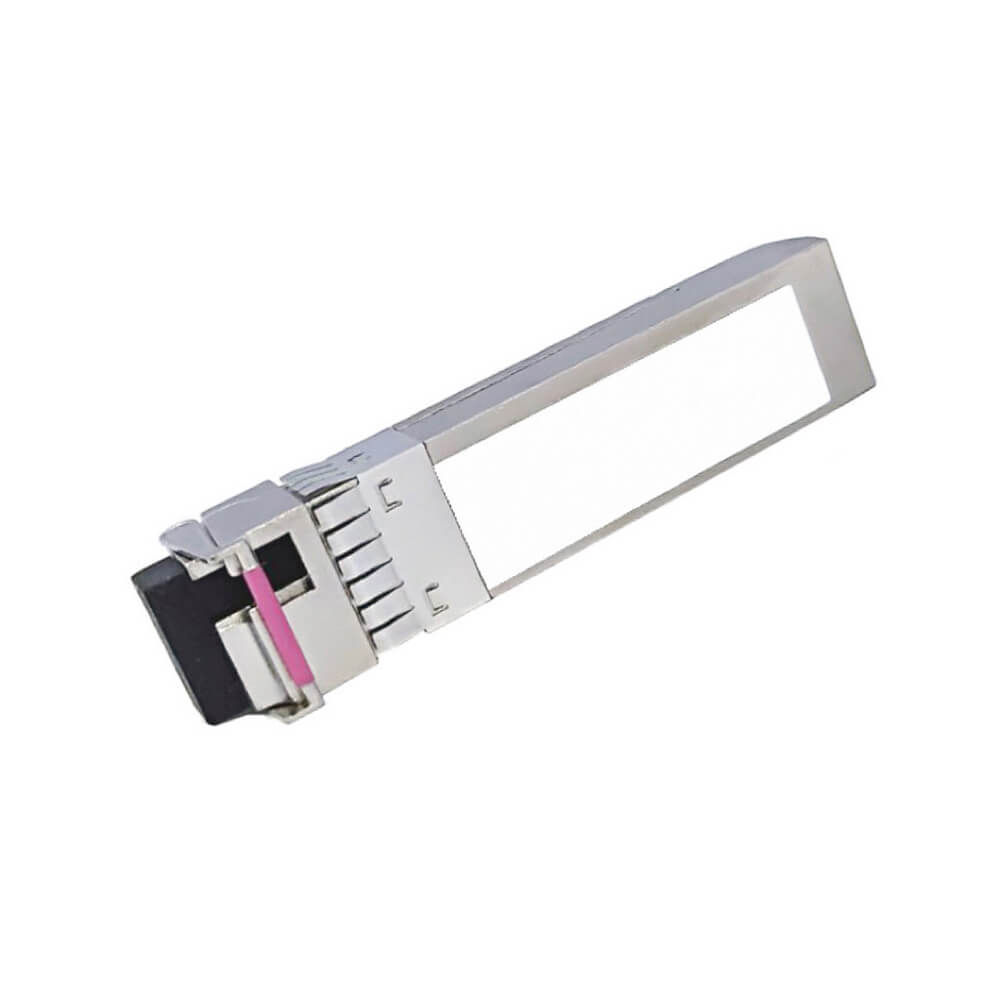

10G SFP+ BIDI

10G SFP+ BIDI Transcievers is designed for 10GBASE 20km 40km 60km 80km Ethernet, 10 GigaBit Data Center, 10 GigaBit Fibre Channel. It is compliant with SFP+ MSA and IEEE 802.3ae, with single fiber LC receptacle, wavelength 1270/1330 or 1490/1550nm.

GET A QUOTE

DataSheet Download

Product Highlight

Hot-pluggable SFP+ form factor
Transmission data rate up to 11.3Gbit/s
Single fiber Bi-directional LC receptacle
DDM Digital Diagnostic Monitor function
Both commercial and industrial applictaion available
RoHS 6 compliant

Application

IEEE 802.3ae 10GBASE Ethernet
10G SONET OC-192 /SDH
10G Fibre Channel
Data center

Specification

10G SFP+ BIDI

P/N	Rate	Wavelength	TX Laser	RX Laser	Distance	Output Power	Sensitivity	Interface	Temperature
FX-SFP+-10GE-BIDI-23-10	10G	TX1270 RX1330	DFP	PIN	10 km	-6~-0.5 dBm	≤-14.4dBm	LC/SC	0 ~ 70 °C
FX-SFP+-10GE-BIDI-32-10	10G	TX1330 RX1270	DFP	PIN	10 km	-6~-0.5 dBm	≤-14.4dBm	LC/SC	0 ~ 70 °C
FX-SFP+-10GE-BIDI-23-40	10G	TX1270 RX1330	DFP	PIN	40 km	-1~3 dBm	≤-16dBm	LC/SC	0 ~ 70 °C
FX-SFP+-10GE-BIDI-32-40	10G	TX1330 RX1270	DFP	PIN	40 km	-1~3 dBm	≤-16dBm	LC/SC	0 ~ 70 °C
FX-SFP+-10GE-BIDI-23-60	10G	TX1270 RX1330	DFP	PIN	60 km	-0~5 dBm	≤-20dBm	LC/SC	0 ~ 70 °C
FX-SFP+-10GE-BIDI-32-60	10G	TX1330 RX1270	DFP	PIN	60 km	-0~5 dBm	≤-20dBm	LC/SC	0 ~ 70 °C
FX-SFP+-10GE-BIDI-45-80	10G	TX1490 RX1550	EML	APD	80 km	-1~4 dBm	≤-23dBm	LC/SC	0 ~ 70 °C
FX-SFP+-10GE-BIDI-54-80	10G	TX1550 RX1490	EML	APD	80 km	-1~4 dBm	≤-23dBm	LC/SC	0 ~ 70 °C

10G SFP+ Dual Fiber

P/N	Rate	Wavelength	TX Laser	RX Laser	Distance	Output Power	Sensitivity	Interface	Temperature
FX-SFP+-10GE-DM-85-03	10G	850 nm	VCSEL	PIN	300 m	-6~-1 dBm	≤-10dBm	LC	0 ~ 70 °C
FX-SFP+-10GE-DS-13-2	10G	1310 nm	FP	PIN	2 km	-6~-0.5 dBm	≤-14.4dBm	LC	0 ~ 70 °C
FX-SFP+-10GE-DS-13-10	10G	1310 nm	DFP	PIN	10 km	-6~-0.5 dBm	≤-14.4dBm	LC	0 ~ 70 °C
FX-SFP+-10GE-DS-15-40	10G	1550 nm	EML	PIN	40 km	-1~3 dBm	≤-16dBm	LC	0 ~ 70 °C
FX-SFP+-10GE-DS-15-80	10G	1550 nm	EML	APD	80 km	-1~4 dBm	≤-23dBm	LC	0 ~ 70 °C

10G SFP+ CWDM

P/N	Rate	Wavelength	TX Laser	RX Laser	Distance	Output Power	Sensitivity	Interface	Temperature
FX-SFP+-10GE-CWDM-40	10G	1470~1610nm	EML	PIN	40 km	-1~3 dBm	≤-16dBm	LC	0 ~ 70 °C
FX-SFP+-10GE-CWDM-80	10G	1470~1610nm	EML	APD	80 km	-1~4 dBm	≤-23dBm	LC	0 ~ 70 °C

10G SFP+ DWDM

P/N	Rate	Wavelength	TX Laser	RX Laser	Distance	Output Power	Sensitivity	Interface	Temperature
FX-SFP+-10GE-DWDM-40	10G	C17~C61	EML	PIN	40 km	-1~3 dBm	≤-16dBm	LC	0 ~ 70 °C
FX-SFP+-10GE-DWDM-80	10G	C17~C61	EML	APD	80 km	-1~4 dBm	≤-23dBm	LC	0 ~ 70 °C

Note: Industrial grade -40 to 85 °C is available.
