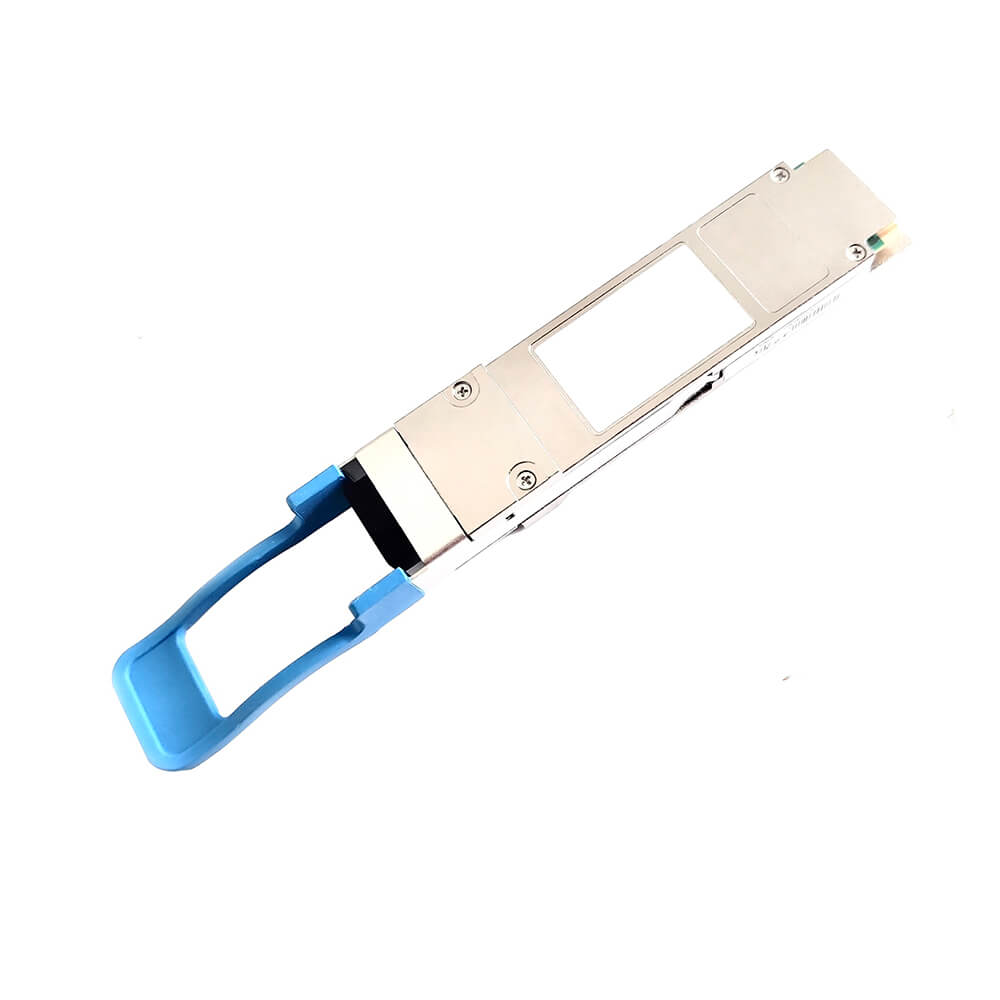

200G QSFP56

200G QSFP56 optical transciever module is compliant with the CMIS4.04, QSFP MSA, IEEE 802.3bs and operates according to the InfiniBand IBTA specification, and it is designed for use in 200Gb/s HDR InfiniBand applications.

GET A QUOTE

DataSheet Download

Product Highlight

Hot Pluggable QSFP-DD Form Factor
Max. Power Consumption 4.5W
High-speed Electrical Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

Application

2×100GBASE-SR4 Ethernet
Data center
NVLink Interconnects
Switch & Router Connections

Specification

200G QSFP56

P/N	Rate	Wavelength	TX Laser	RX Laser	Distance	Output Power	Sensitivity	Interface	Temperature
FX-Q56-200GE-4M-85-01	100G	850	VCSEL	PIN	100m	-6.5~4 dBm	≤-5.4dBm	MPO	0 ~ 70 °C
FX-Q56-200GE-LWDM-10	100G	LWDM4	DFB	PIN	10 km	-4~5 dBm	≤-8.2dBm	LC	0 ~ 70 °C

Note: Industrial grade -40 to 85 °C is available.

200G QSFP-DD

P/N	Rate	Wavelength	TX Laser	RX Laser	Distance	Output Power	Sensitivity	Interface	Temperature
FX-QDD-200GE-8M-85-01	100G	850	VCSEL	PIN	100m	-8.4~2.4 dBm	≤-10.3dBm	MPO	0 ~ 70 °C

Note: Industrial grade -40 to 85 °C is available.
