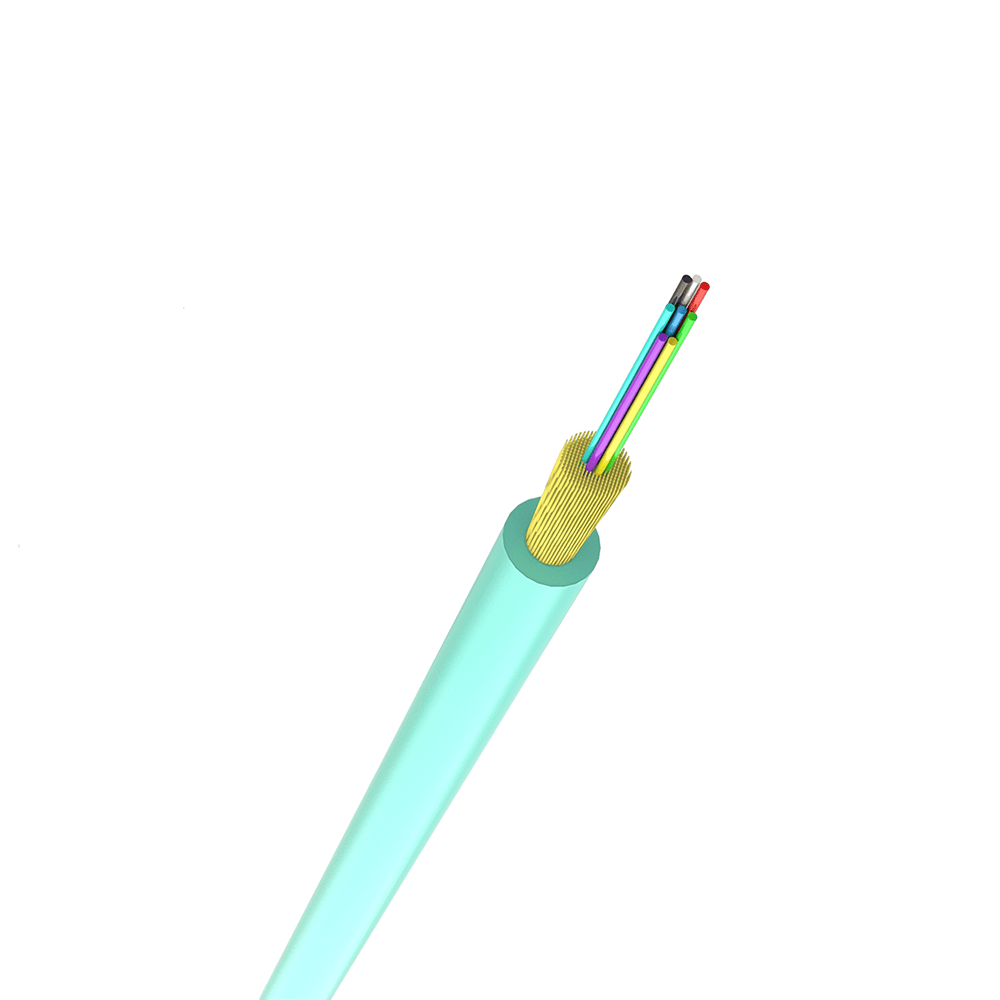

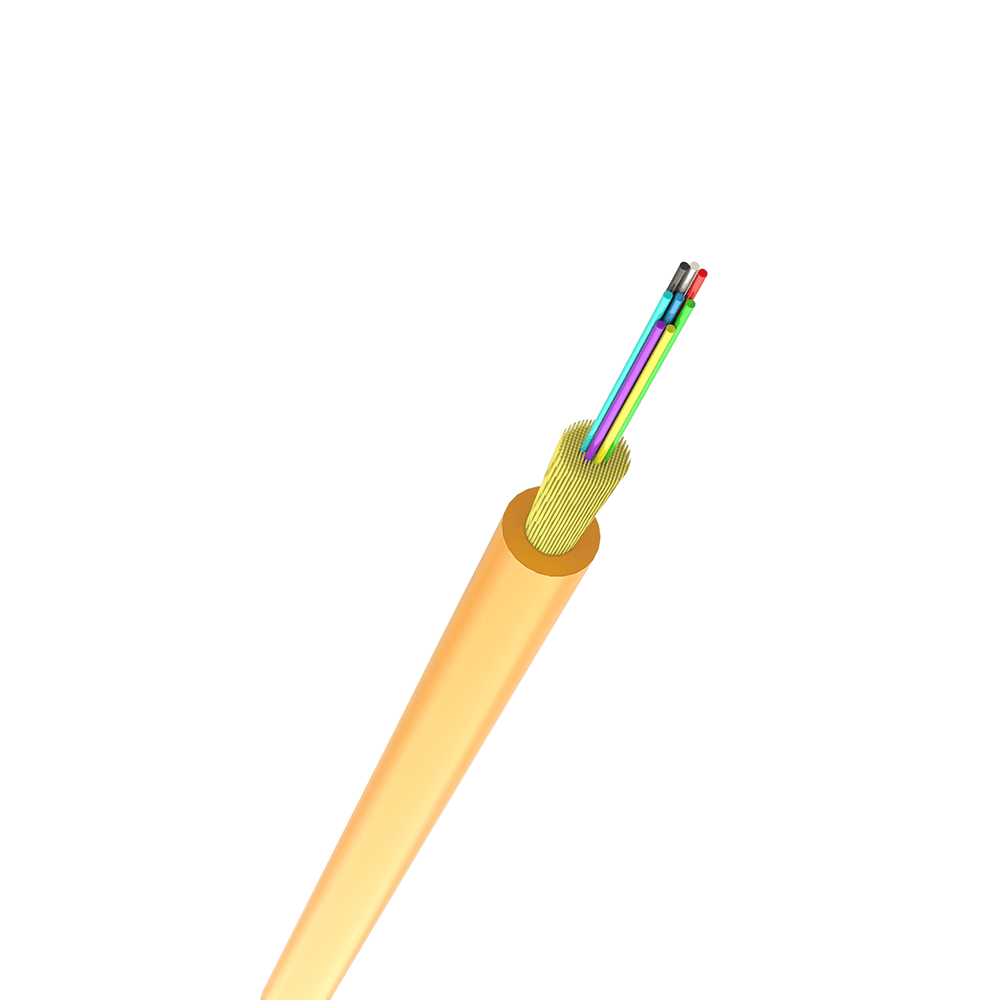

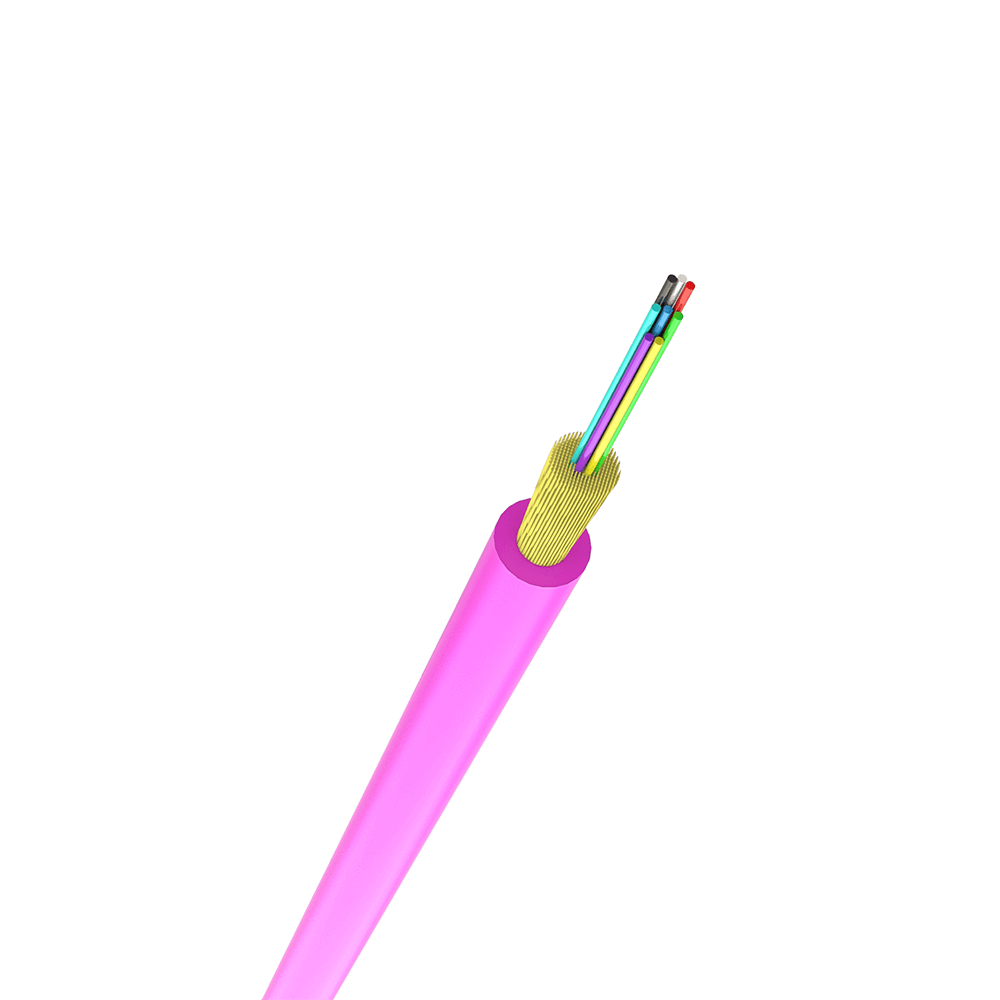

Mini Round Cable

Indoor GJFH GJFV Indoor mini round 2~24 fibers SM MM Data Center cable

GET A QUOTE

Cable Mechanical Characteristics

Fiber Count	Cable OD (mm)	Tensile Resistance (N) Long/Short Term	Crush Resistance（N/100mm） Long/Short Term	Bending Radius (mm) Static/Dynamic
2	3.0	80/150	150/500	10D/20D
4	3.0	80/150	150/500	10D/20D
6	3.0	80/150	150/500	10D/20D
8	3.0	80/150	100/500	10D/20D
12	3.0	80/150	100/500	10D/20D
24	3.0	80/150	100/500	10D/20D

Operation Temperature (°C)	-20 ~ +60
Storage Temperature (°C)	-20 ~ +60

Bare Fiber	Blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, aqua Note: ① When the optical fibers in each loose tube is less than 12, they will be colored from the first color (blue) in sequence; ② The fiber color coding can be customized
Outer Jacket	Blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, aqua

Single Mode Fiber
			Unit	G.652D	G657A1	G657A2
Cladding Diameter			μm	125±1.0	125±0.7	125±0.7
Cladding non-circularity			%	≤ 1.0	≤ 0.7	≤ 0.7
Core-cladding Concentricity Error			μm	≤ 0.6	≤ 0.5	≤ 0.5
Coating Diameter			μm	245±7	245±5	245±5
Coating non-circularity			%	≤ 6.0	≤ 6.0	≤ 6.0
Cladding-coating concentricity error			μm	≤ 12.0	≤ 12.0	≤ 12.0
Cable Cutoff Wavelength (λcc)			nm	≤ 1260	≤ 1260	≤ 1260
Mode Field Diameter		1310nm	μm	≤ 0.4	≤ 0.4	≤ 0.4
Mode Field Diameter		1550nm	μm	≤ 0.3	≤ 0.3	≤ 0.3
Multimode Fiber
		Unit	62.5/125	50/125	OM3	OM4
Core Diameter		μm	62.5±2.5	50±2.5	50±2.5	50±2.5
Cladding Diameter		μm	125±1.0	125±1.0	125±1.0	125±1.0
Core Non-circularity		%	≤ 5.0	≤ 5.0	≤ 5.0	≤ 5.0
Cladding Non-circularity		%	≤ 1.0	≤ 1.0	≤ 1.0	≤ 1.0
Core-cladding Concentricity Error		μm	≤ 1.5	≤ 1.5	≤ 1.0	≤ 1.0
Coating Diameter		μm	245±7	245±7	245±7	245±7
Coating Non-circularity		%	≤ 6.0	≤ 6.0	≤ 6.0	≤ 6.0
Cladding-coating Concentricity Error		μm	≤ 12.0	≤ 12.0	≤ 12.0	≤ 12.0
OFL Bandwidth	850nm	MHz·km	≥ 160	≥ 500	≥ 1500	≥ 3500
OFL Bandwidth	1300nm	MHz·km	≥ 500	≥ 500	≥ 500	≥ 500
