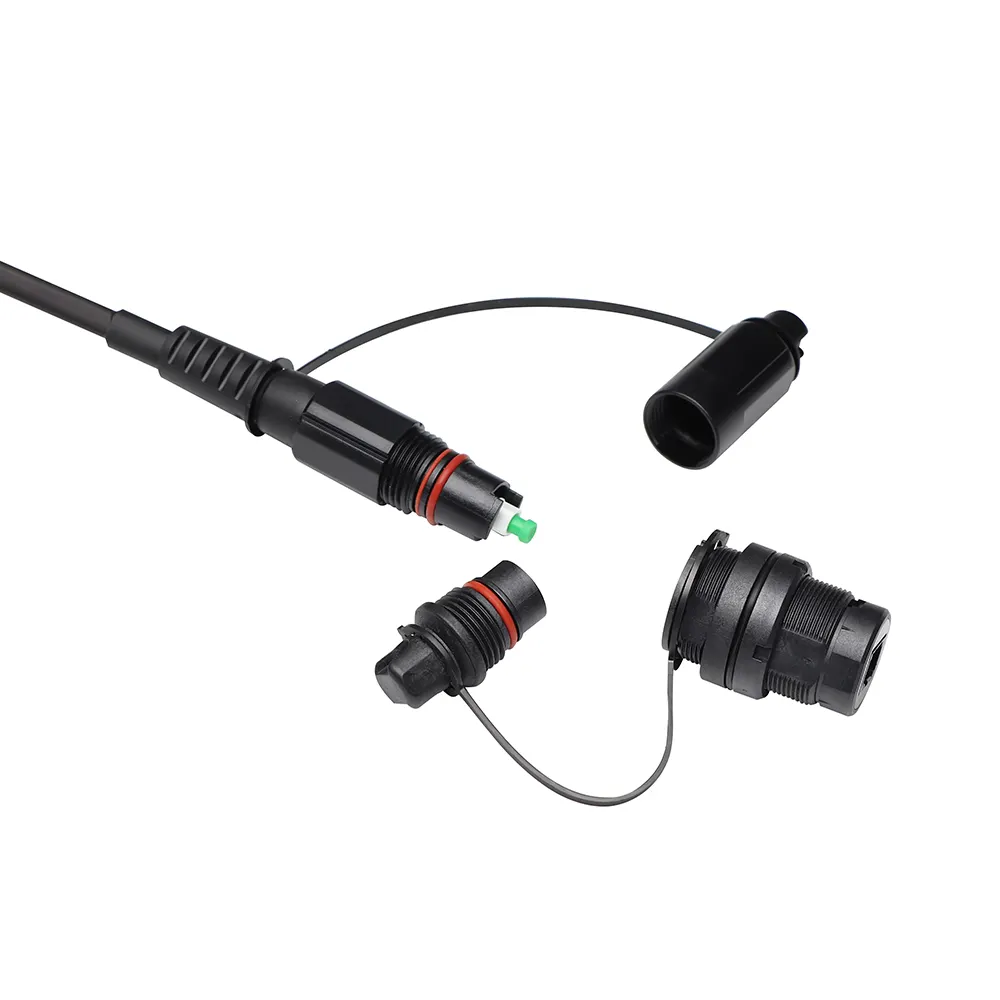

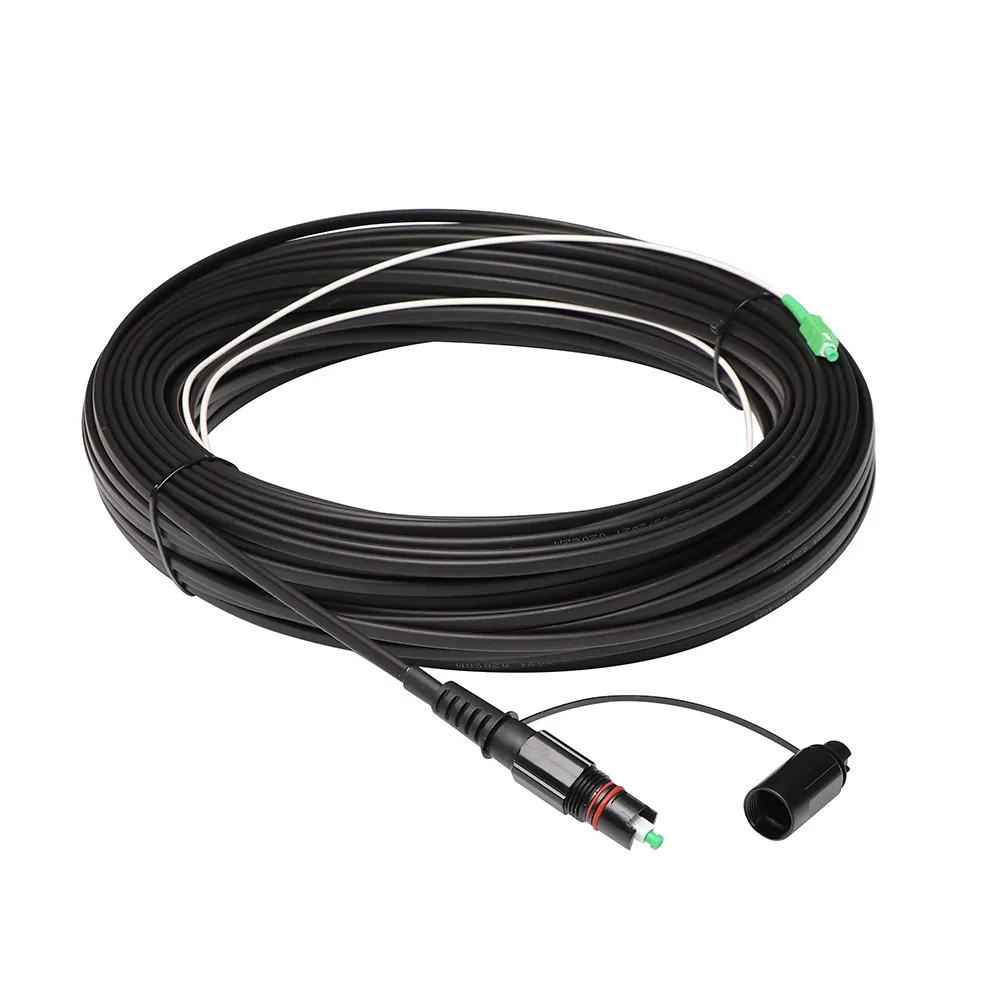

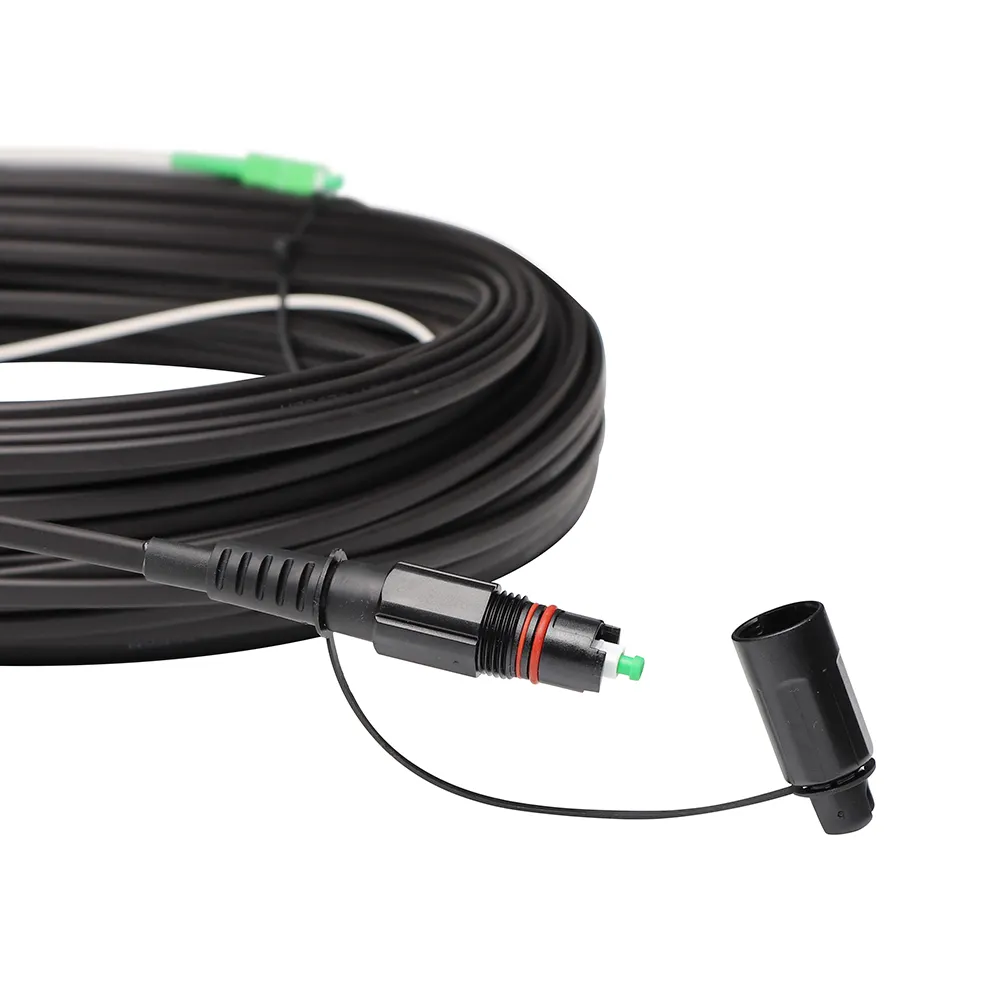

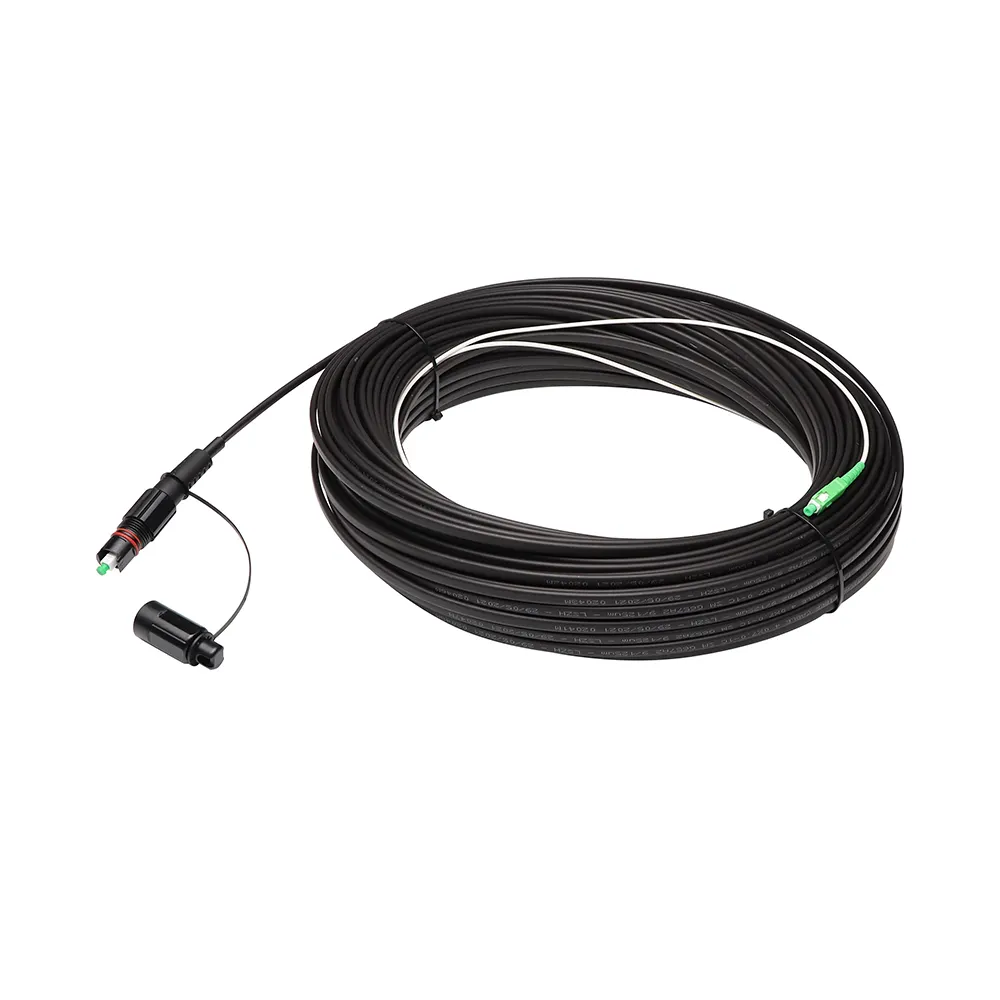

OptiTap pre-terminated assembly provides a robust and sealed solution for fiber to the home FTTH connectivity. The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.



Application

  • FTTH
  • Outdoor Areas
  • Harsh Environment

Features

  • Compatible with Corning OptiTap and H-Connector
  • Factory terminated for high performance
  • Designed for aerial, direct-buried or duct installation
  • IP67 protection level

Mechanical Performance

Item Data
Durability ≥ 500 mating
Ingress IP67
Operation Temperature -40 ~+80℃

Applicable Cable

LC DX
SC SX
Drop cable 2.0*3.0mm
Drop cable 2.0*5.0mm
3.0~7.0mm Cable without armor
Tactical Cable: OD 5.0mm
RRH Cable: OD 7.0mm
Armored Cable: OD 5.0mm
MPO Indoor & Outdoor Cable: OD 7.0mm
Armored Cable: OD 7.0mm
Mini Round Cable: OD 7.0mm
