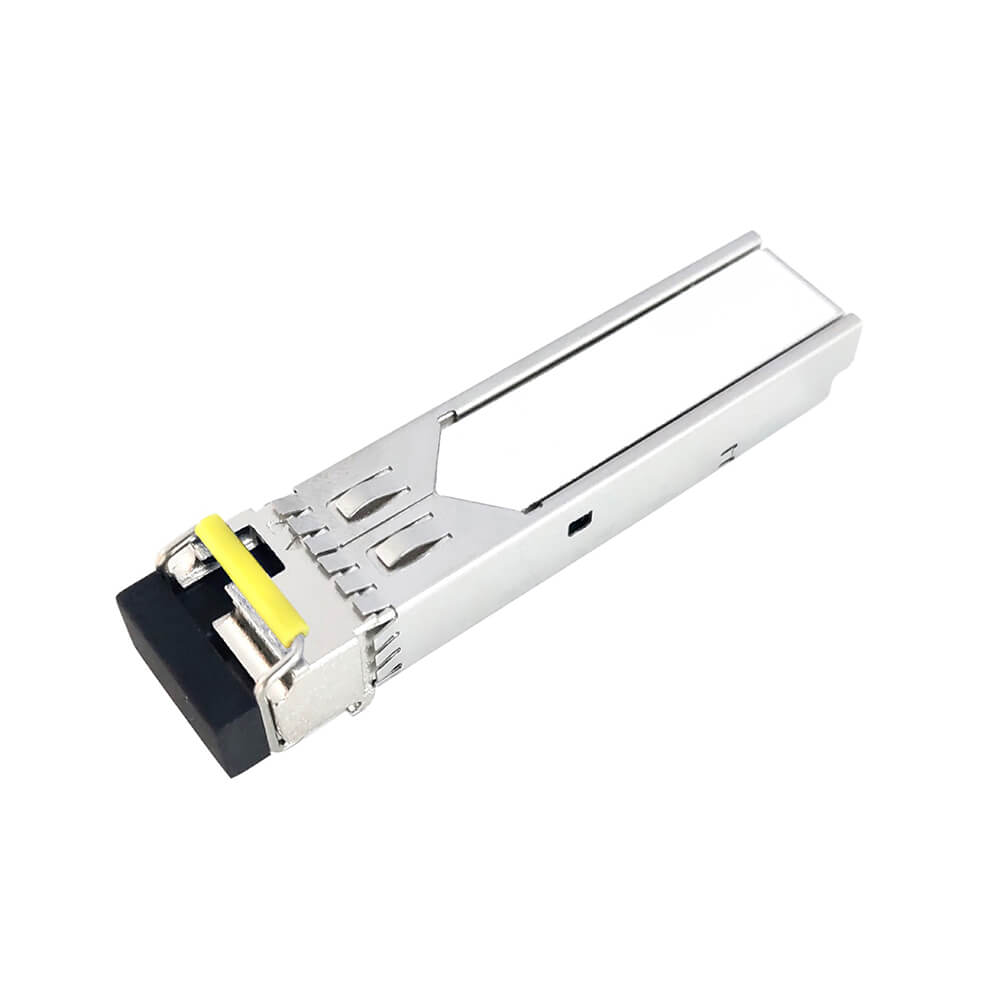

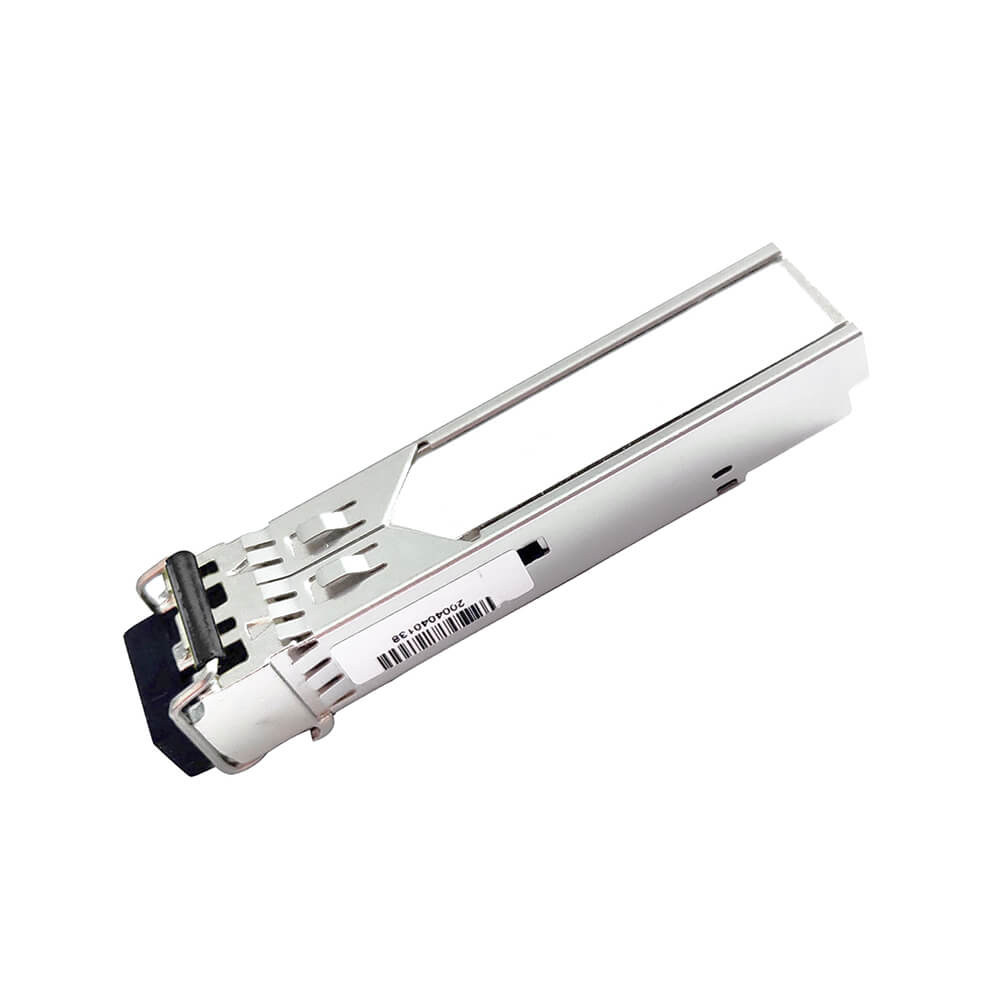

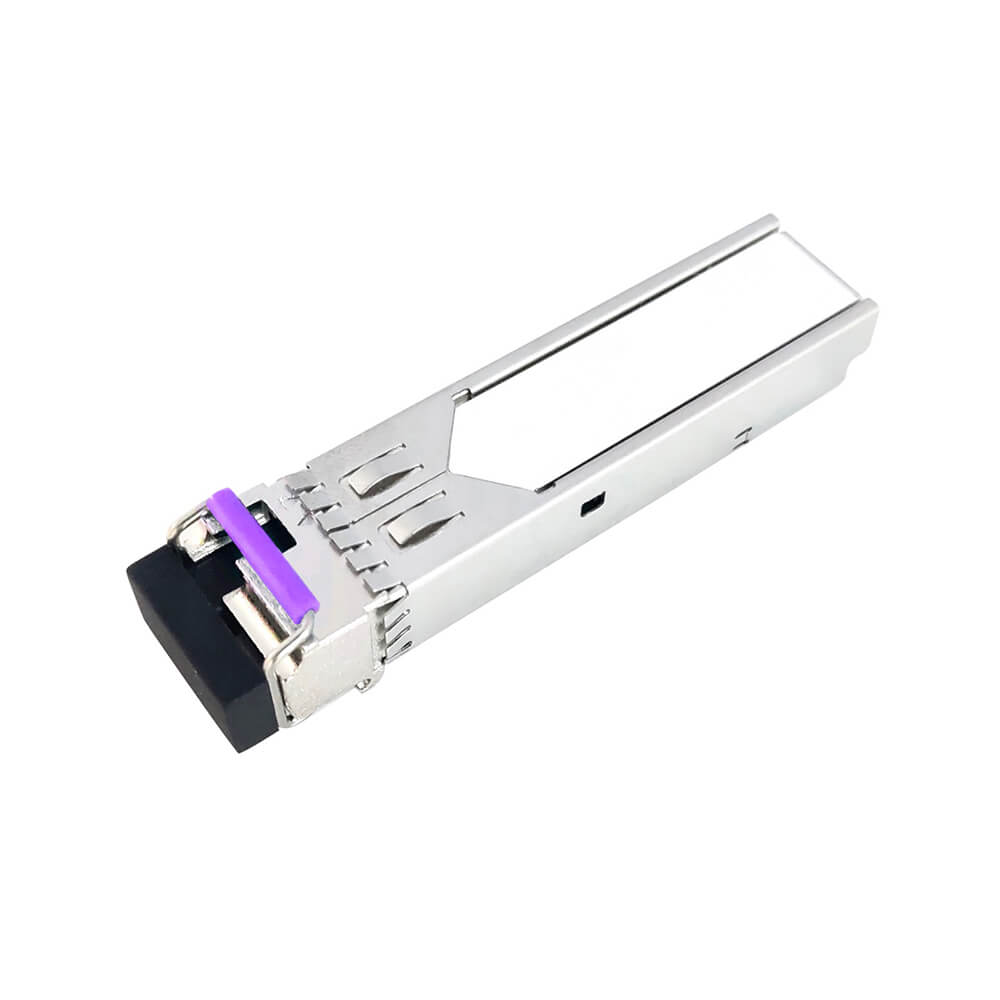

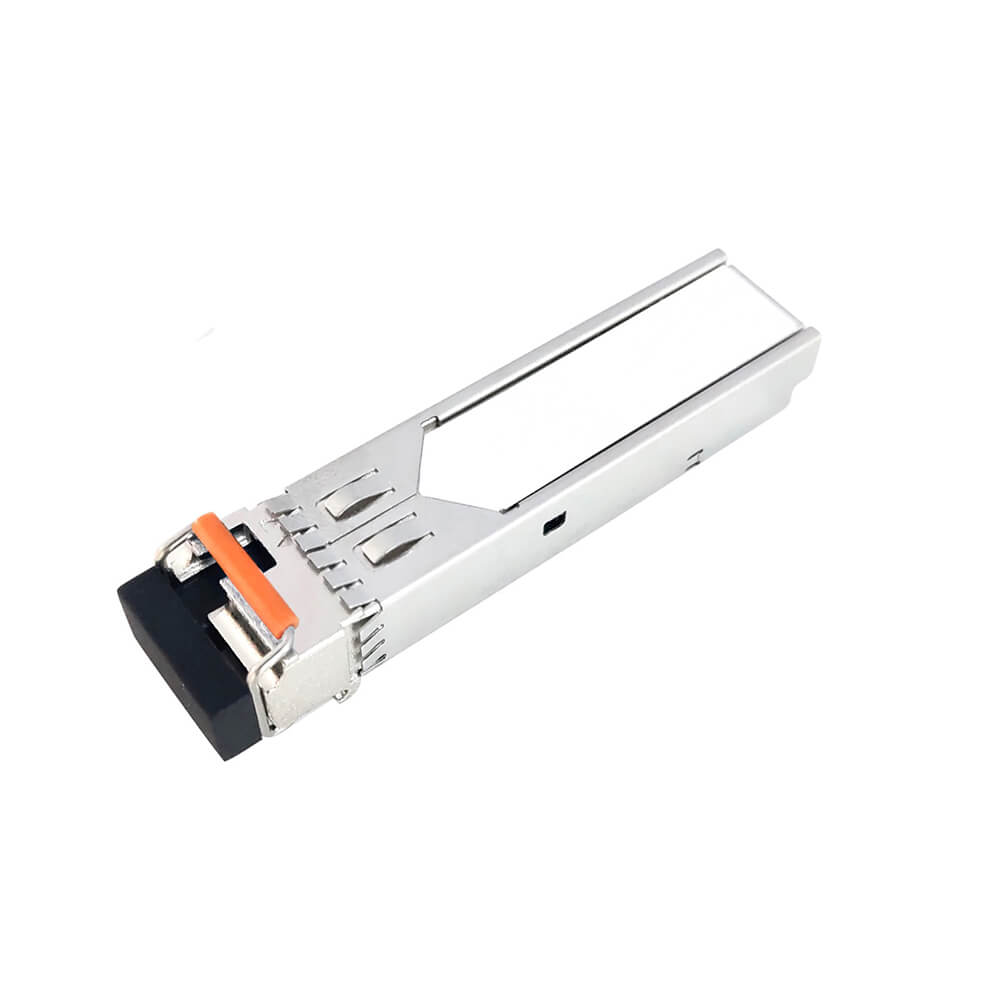

SFP BIDI

Small form factor SFP support Ethernet, SDH, Fiber Channel, CPRI and OBSAI protocols and are used over SMF, MMF and Copper Cable as a media. Interconnection distances ranges from 100 meters up to 120km. Portfolio comprehend 1000 BASE-T, SX, LX, EX, ZX and other industry well known module types. For the OBSAI application, the rates are 6.144 Gb/s, 3.072 Gb/s, 1.536 Gb/s, 0.768Gb/s; For the CPRI application, the rates are 9.830 Gb/s, 7.373Gb/s, 6.144 Gb/s, 4.915 Gb/s, 2.458 Gb/s, 1.229 Gb/s, 0.614Gb/s; For Vedio application, it supports SMPET standard for SDI signals.

GET A QUOTE

DataSheet Download

Product Highlight

Hot-pluggable SFP form factor
Transmission data rate ranging from 155M to 6Gbps
WDM Bi-directional Single fiber LC or SC receptacle
Digital Diagnostic Monitor Interface (DDM DOM)
Operating case temperature: 0 to 70 °C or -40 to 85 °C
RoHS 6 compliant

Application

Gigabit Ethernet.
Fiber Channel.
Video Transmission, Base Station
Other Optical Links

Specification

SFP 155M BIDI

P/N	Rate	Wavelength	TX Laser	RX Laser	Distance	Output Power	Sensitivity	Interface	Temperature
FX-SFP-01GE-BIDI-35-20	155M	TX1310 RX1550	FP	PIN	20 km	-14~-8 dBm	≤-32dBm	LC/SC	0 ~ 70 °C
FX-SFP-01GE-BIDI-53-20	155M	TX1550 RX1310	FP	PIN	20 km	-14~-8 dBm	≤-32dBm	LC/SC	0 ~ 70 °C
FX-SFP-01GE-BIDI-35-40	155M	TX1310 RX1550	FP	PIN	40 km	-5~0 dBm	≤-32dBm	LC/SC	0 ~ 70 °C
FX-SFP-01GE-BIDI-53-40	155M	TX1550 RX1310	FP	PIN	40 km	-5~0 dBm	≤-32dBm	LC/SC	0 ~ 70 °C

Note: Industrial grade -40 to 85 °C is available.

SFP 1.25G BIDI

P/N	Rate	Wavelength	TX Laser	RX Laser	Distance	Output Power	Sensitivity	Interface	Temperature
FX-SFP-1GE-BIDI-35-20	1.25G	TX1310 RX1550	FP	PIN	20 km	-9~-3 dBm	≤-23dBm	LC/SC	0 ~ 70 °C
FX-SFP-1GE-BIDI-53-20	1.25G	TX1550 RX1310	FP	PIN	20 km	-9~-3 dBm	≤-23dBm	LC/SC	0 ~ 70 °C
FX-SFP-1GE-BIDI-35-40	1.25G	TX1310 RX1550	DFB	PIN	40 km	-5~0 dBm	≤-23dBm	LC/SC	0 ~ 70 °C
FX-SFP-1GE-BIDI-53-40	1.25G	TX1550 RX1310	DFB	PIN	40 km	-5~0 dBm	≤-23dBm	LC/SC	0 ~ 70 °C
FX-SFP-1GE-BIDI-45-80	1.25G	TX1490 RX1550	DFB	PIN	80 km	-2~3 dBm	≤-25dBm	LC/SC	0 ~ 70 °C
FX-SFP-1GE-BIDI-54-80	1.25G	TX1550 RX1490	DFB	PIN	80 km	-2~3 dBm	≤-25dBm	LC/SC	0 ~ 70 °C
FX-SFP-1GE-BIDI-45-120	1.25G	TX1490 RX1550	DFB	APD	120 km	0~5 dBm	≤-30dBm	LC/SC	0 ~ 70 °C
FX-SFP-1GE-BIDI-54-120	1.25G	TX1550 RX1490	DFB	APD	120 km	0~5 dBm	≤-30dBm	LC/SC	0 ~ 70 °C

Note: Industrial grade -40 to 85 °C is available.

SFP 2.5G BIDI

P/N	Rate	Wavelength	TX Laser	RX Laser	Distance	Output Power	Sensitivity	Interface	Temperature
FX-SFP-2GE-BIDI-35-10	2.5G	TX1310 RX1550	DFB	PIN	10 km	-5~0 dBm	≤-19dBm	LC/SC	0 ~ 70 °C
FX-SFP-2GE-BIDI-53-10	2.5G	TX1550 RX1310	DFB	PIN	10 km	-5~0 dBm	≤-19dBm	LC/SC	0 ~ 70 °C
FX-SFP-2GE-BIDI-35-40	2.5G	TX1310 RX1550	DFB	PIN	40 km	-2~3 dBm	≤-19dBm	LC/SC	0 ~ 70 °C
FX-SFP-2GE-BIDI-53-40	2.5G	TX1550 RX1310	DFB	PIN	40 km	-2~3 dBm	≤-19dBm	LC/SC	0 ~ 70 °C
FX-SFP-2GE-BIDI-45-80	2.5G	TX1490 RX1550	DFB	PIN	80 km	0~5 dBm	≤-28dBm	LC/SC	0 ~ 70 °C
FX-SFP-2GE-BIDI-54-80	2.5G	TX1550 RX1490	DFB	PIN	80 km	0~5 dBm	≤-28dBm	LC/SC	0 ~ 70 °C
FX-SFP-2GE-BIDI-45-120	2.5G	TX1490 RX1550	DFB	PIN	120 km	1~6 dBm	≤-30dBm	LC/SC	0 ~ 70 °C
FX-SFP-2GE-BIDI-54-120	2.5G	TX1550 RX1490	DFB	PIN	120 km	1~6 dBm	≤-30dBm	LC/SC	0 ~ 70 °C

Note: Industrial grade -40 to 85 °C is available.
