25G SFP28 DAC

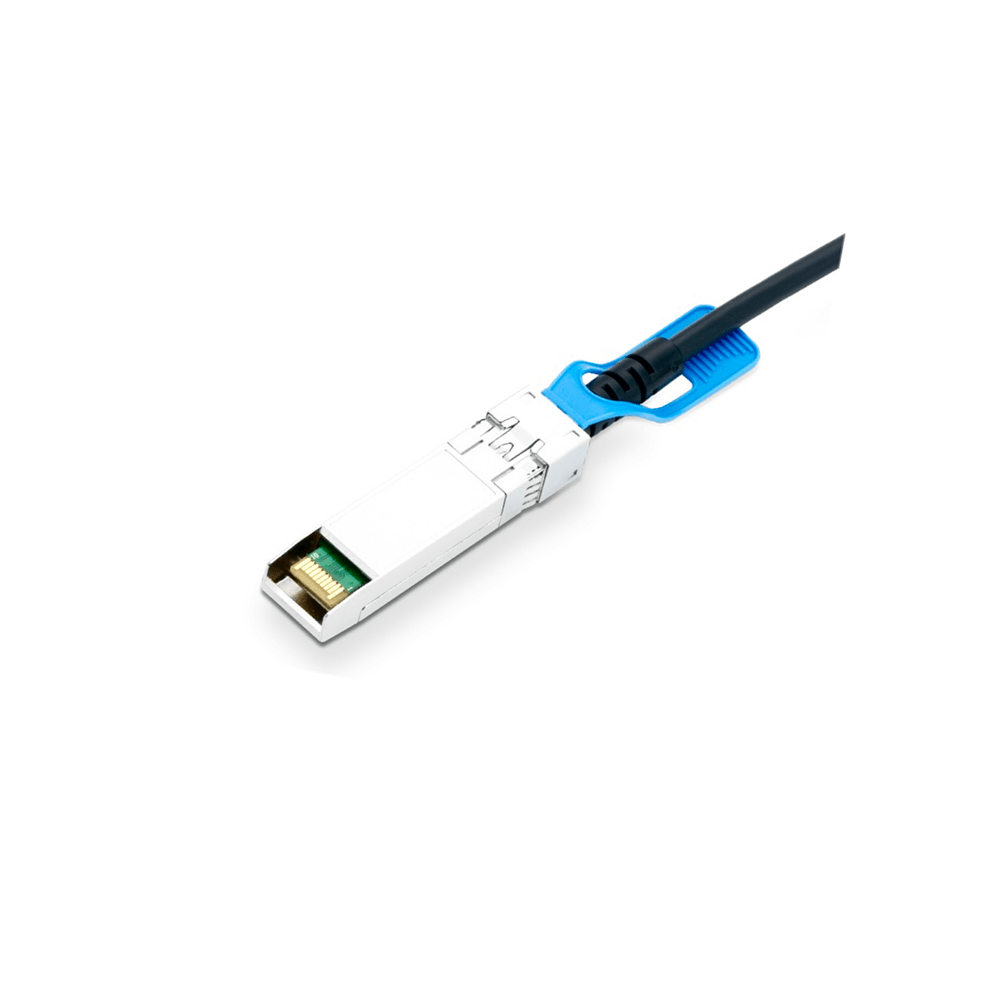

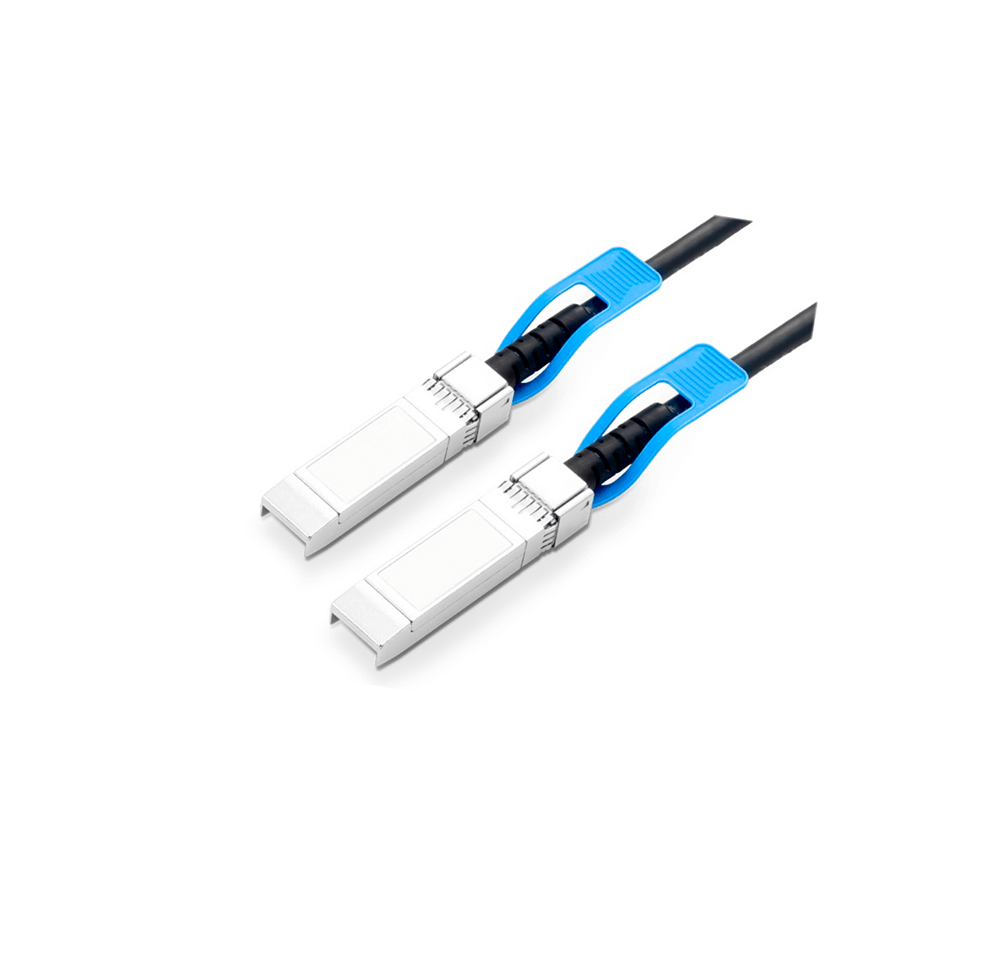

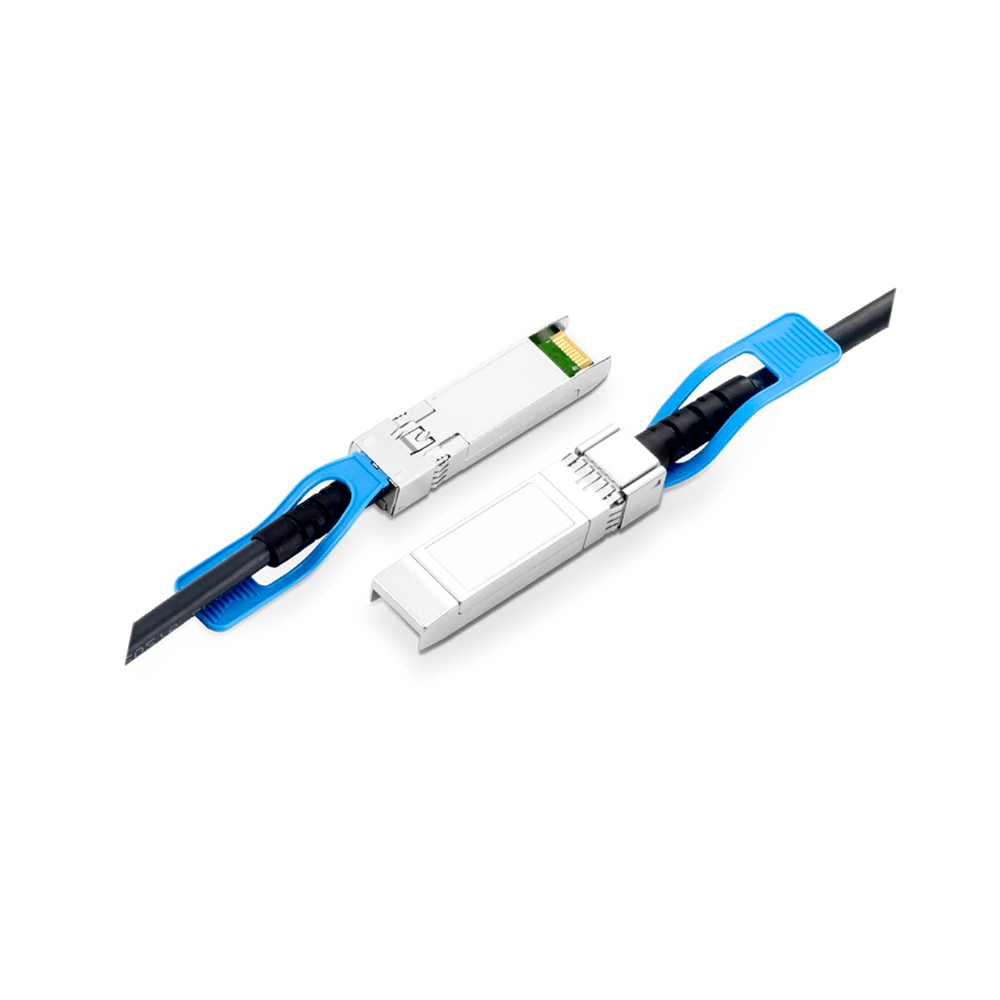

25G SFP28 Direct Attach Cable

25G SFP28 DAC is a high speed, cost-effective passive copper cable for 25Gbp/s Ethernet connectivity solution designed to meet the growing needs for higher bandwidth in data center. The cable is compliant with IEEE P802.3by Ethernet standard and SFF-8402 SFP28 standard.

GET A QUOTE

DataSheet Download

Product Highlight

Up to 25Gb/s data rate SFF-8402 Compliant
Operating temperature of 0-70 °C
Single 3.3V supply voltage
BER better than 10-15
Hot pluggable SFP MSA
RoHS-6 compliant
Compliant with IEEE P802.3

Application

25 Gigabit Ethernet
Fiber Channel
High Performance Computing Clusters
High End Servers
Metro Network Switch/Cross Connect

Specification

P/N	Rate	Interface	Max. Distance
FXDAC-10GE-P-X	10G	SFP+ to SFP+	24AWG<10m, 30AWG<3m
FXDAC-25GE-P-X	25G	SFP28 to SFP28	26AWG<5m, 28AWG<3m, 30AWG<3m
FXDAC-40GE-P-X	40G	QSFP+ to QSFP+	26AWG<7m, 30AWG<3m
FXDAC-40GE-P-X	40G	QSFP+ to 4xSFP+	26AWG<7m, 30AWG<3m
FXDAC-100GE-P-X	100G	QSFP28 to QSFP28	26AWG<5m, 30AWG<3m
FXDAC-200GE-P-X	100G	QSFP56 to QSFP56	26AWG<3m,30AWG<1.5m
