100G QSFP28 DAC

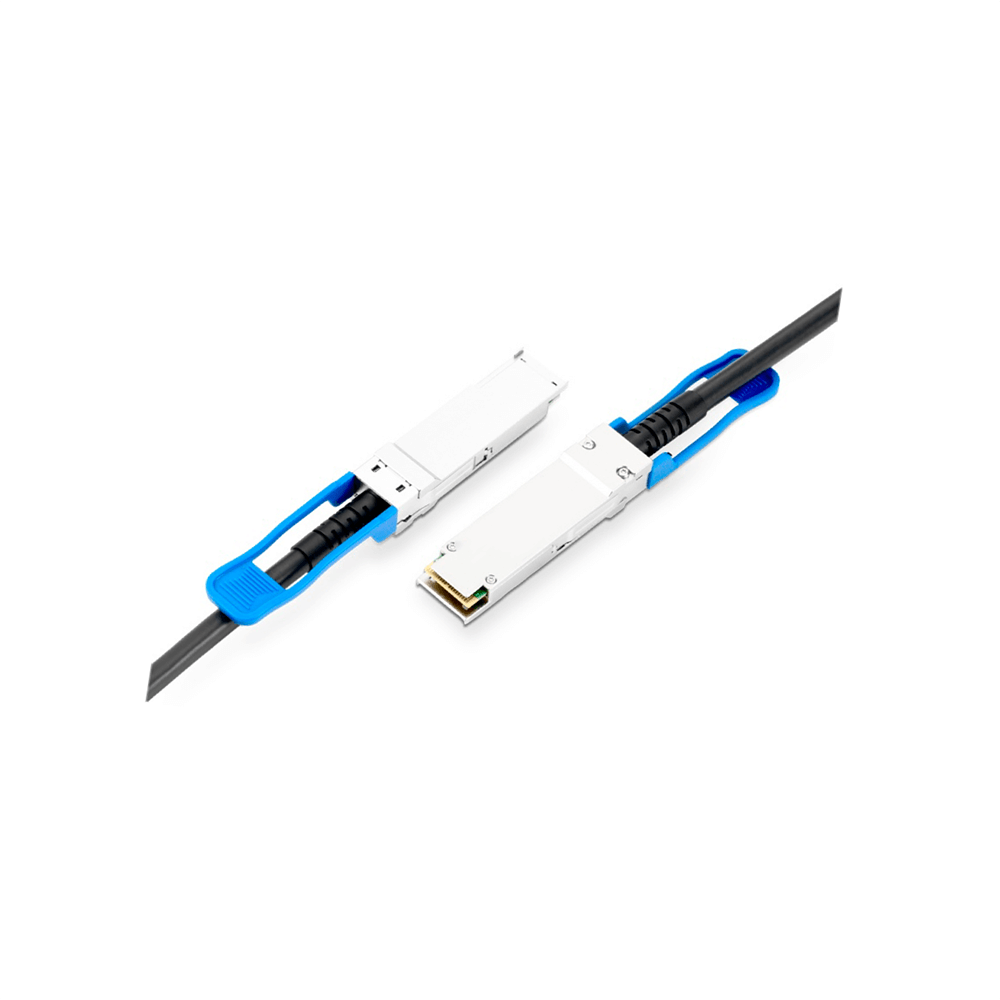

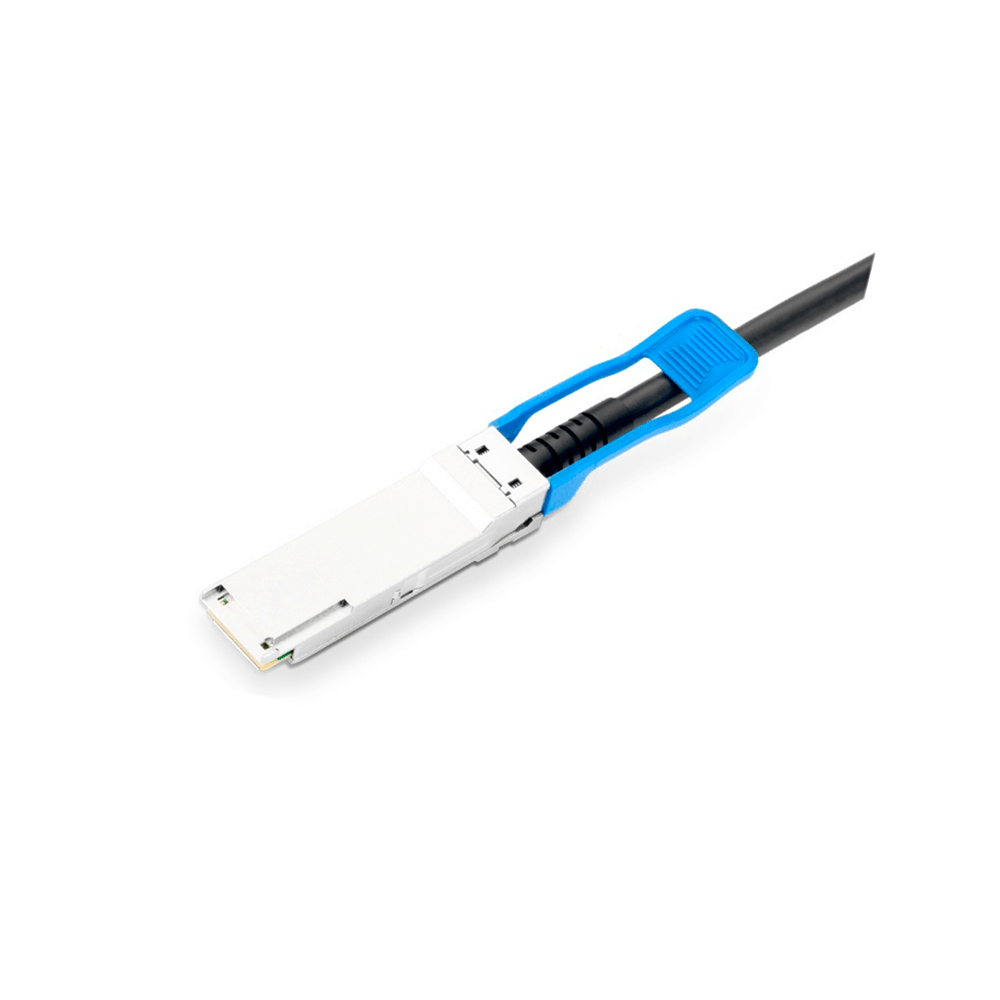

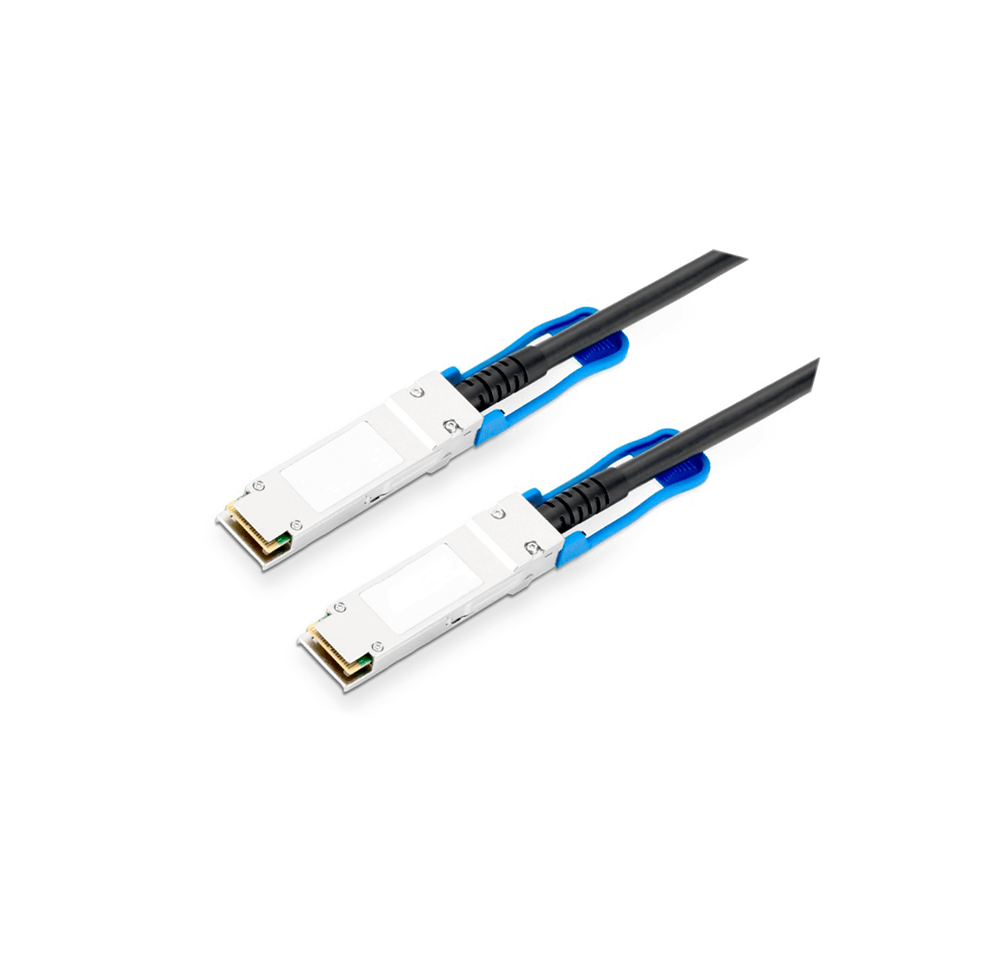

100G QSFP28 Passive Direct Attach Copper Cable

100G QSFP28 passive copper cables is a high performance, cost effective I/O solution for 100G LAN, HPC and SAN applications. The QSFP28 passive copper cable is compliant with SFF-8436. Each lane of the cable is capable of transmitting data at rate up to 25.78Gb/s, providing an aggregated rate of 100Gb/s.

GET A QUOTE

DataSheet Download

Product Highlight

Hot-pluggable QSFP28 form factor
4-Channel Full-Duplex Passive Copper Cable Transceiver
Support multi-gigabit data rates up to 25.78Gb/s each channel
Maximum aggregate data rate: 100Gb/s (4 x 25.78Gb/s)
Operating temperature 0 to 70 °C
RoHS 6 compliant

Application

100 Gigabit Ethernet
Fiber Channel
Data Center
Data Storage

Specification

P/N	Rate	Interface	Max. Distance
FXDAC-10GE-P-X	10G	SFP+ to SFP+	24AWG<10m, 30AWG<3m
FXDAC-25GE-P-X	25G	SFP28 to SFP28	26AWG<5m, 28AWG<3m, 30AWG<3m
FXDAC-40GE-P-X	40G	QSFP+ to QSFP+	26AWG<7m, 30AWG<3m
FXDAC-40GE-P-X	40G	QSFP+ to 4xSFP+	26AWG<7m, 30AWG<3m
FXDAC-100GE-P-X	100G	QSFP28 to QSFP28	26AWG<5m, 30AWG<3m
FXDAC-200GE-P-X	100G	QSFP56 to QSFP56	26AWG<3m,30AWG<1.5m
