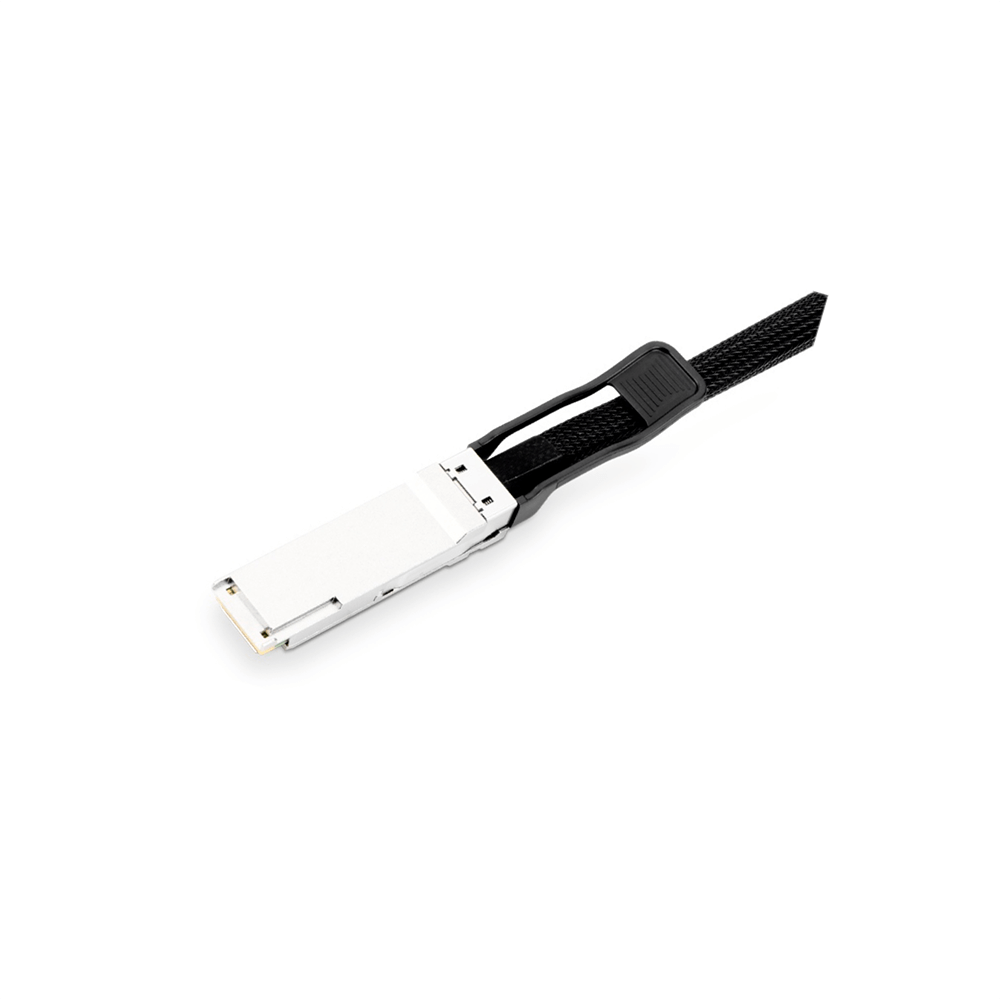

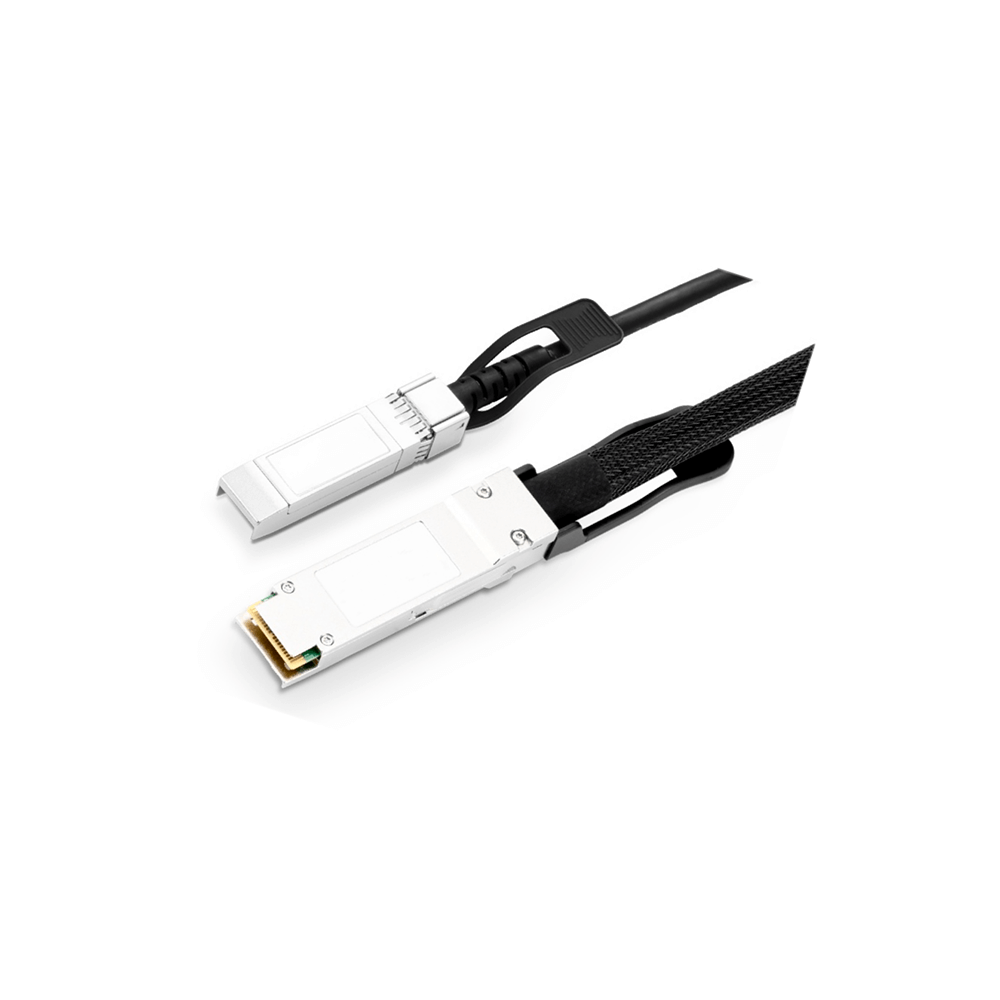

40G QSFP+ to 4xSFP+ DAC

40G QSFP+ to 4xSFP+ Direct Attach Copper Cable

40G QSFP+ to 4x 10G SFP+ direct attach breakout copper cable assemblies are a low cost and alternative for short reach breakout applications. This DAC is compatible with form factor and electrical interfaces according to the QSFP MSA and SFP+ MSA.

GET A QUOTE

DataSheet Download

Product Highlight

Hot-pluggable QSFP+ form factor to 4x SFP+
4-Channel Full-Duplex Passive Copper Cable Transceiver
Support multi-gigabit data rates 1G to 10Gb/s each channel
Maximum aggregate data rate 40Gb/s (4 x 10Gb/s)
Operating temperature 0 to 70 °C
RoHS 6 compliant

Application

40 Gigabit Ethernet
Fiber Channel
Data Center
Data Storage

Specification

P/N	Rate	Interface	Max. Distance
FXDAC-10GE-P-X	10G	SFP+ to SFP+	24AWG<10m, 30AWG<3m
FXDAC-25GE-P-X	25G	SFP28 to SFP28	26AWG<5m, 28AWG<3m, 30AWG<3m
FXDAC-40GE-P-X	40G	QSFP+ to QSFP+	26AWG<7m, 30AWG<3m
FXDAC-40GE-P-X	40G	QSFP+ to 4xSFP+	26AWG<7m, 30AWG<3m
FXDAC-100GE-P-X	100G	QSFP28 to QSFP28	26AWG<5m, 30AWG<3m
FXDAC-200GE-P-X	100G	QSFP56 to QSFP56	26AWG<3m,30AWG<1.5m
