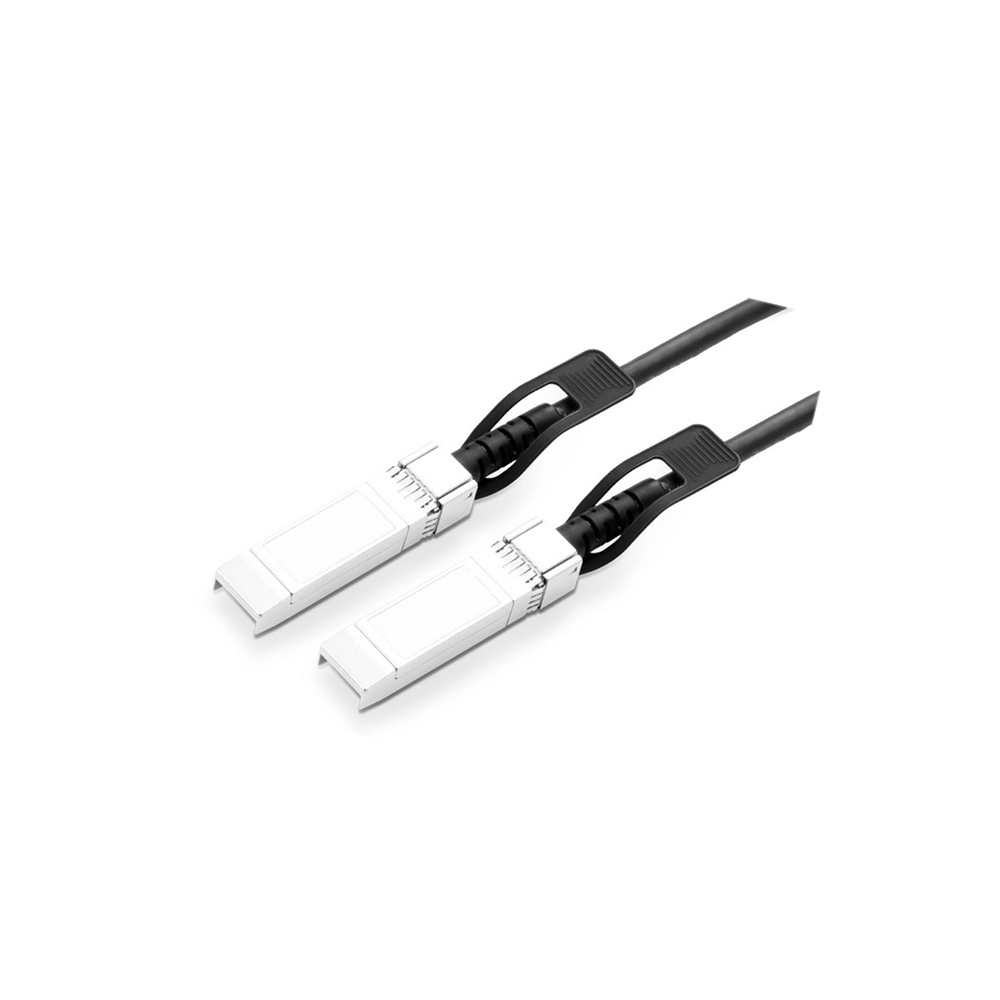

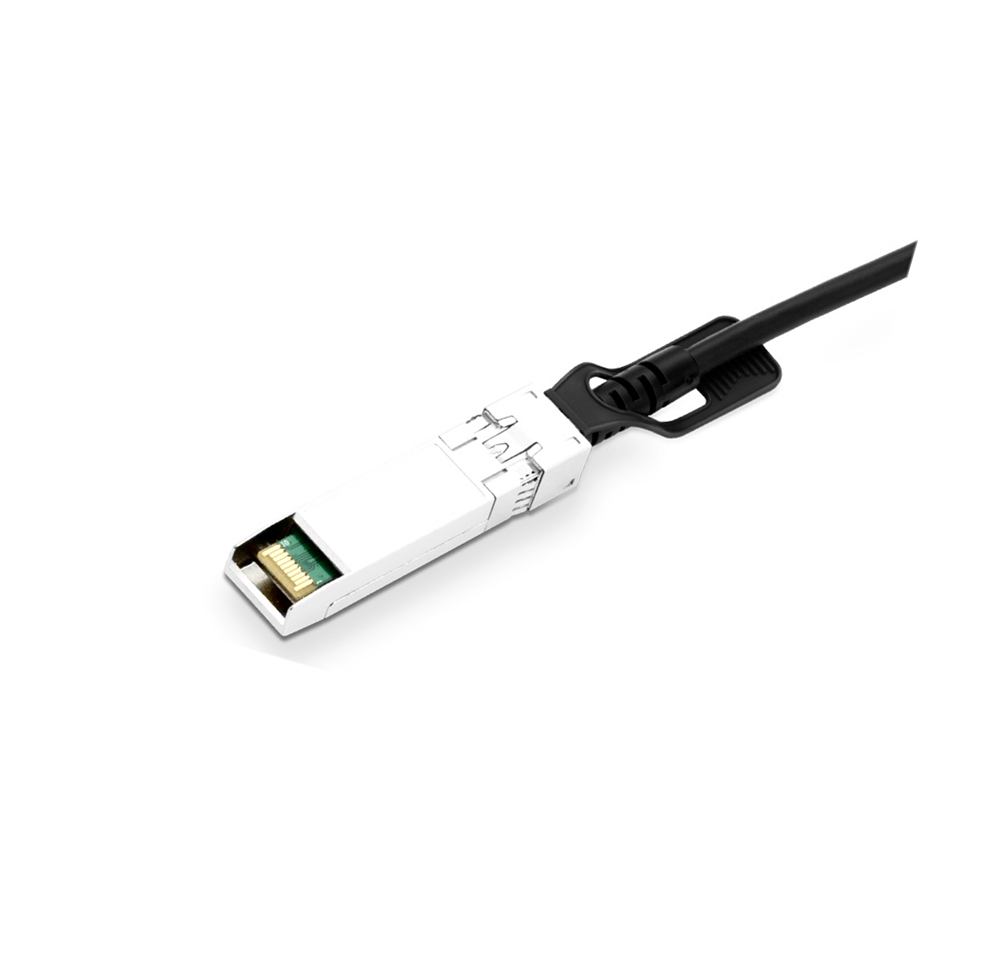

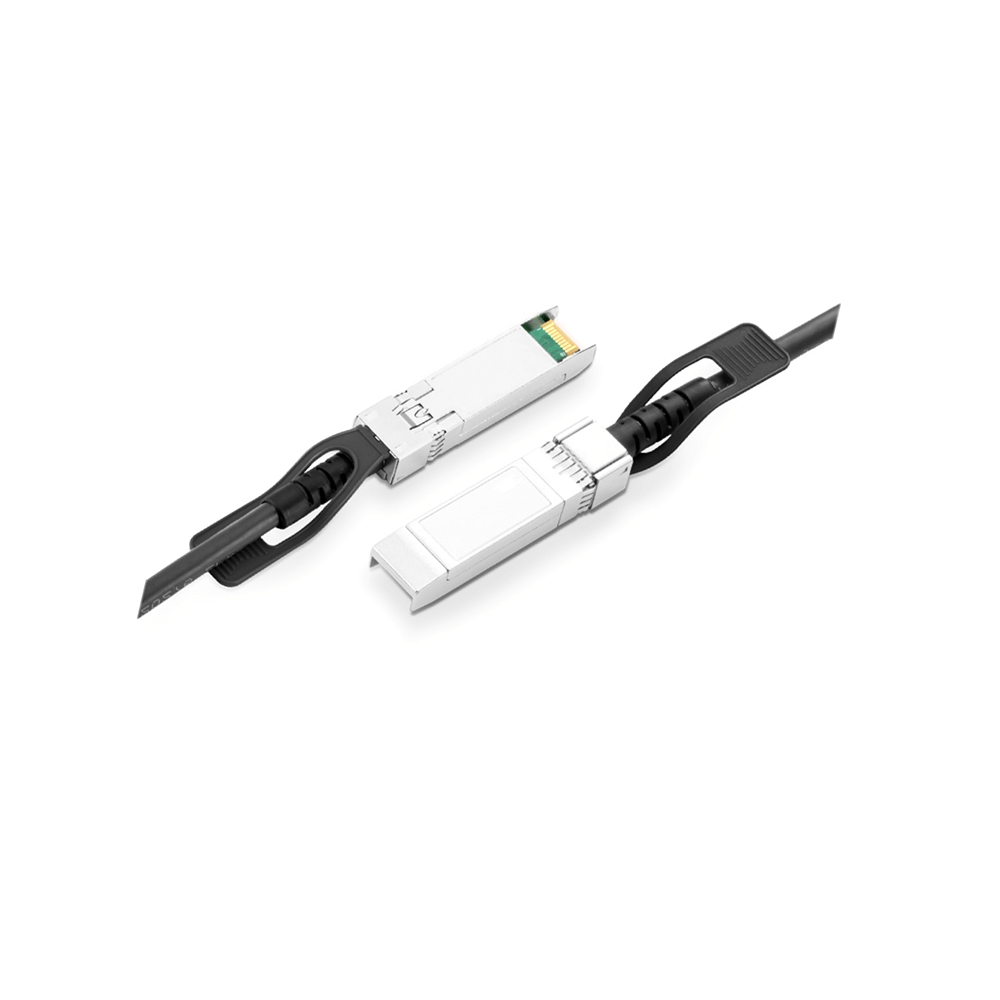

10G SFP+ DAC

10G SFP+ Direct Attach Copper Cable

10G SFP+ DAC is a high speed direct attach twinax cable, and designed for 10 Gigabit Ethernet network, sending 10Gbps data through a pair of transmitter and receiver over a thin copper cable. They are compliant with electrical standards SFF-8431, SFF-8083 and mechanical standard SFF-8432, EEPROM standard SFF-8472.

GET A QUOTE

DataSheet Download

Product Highlight

Hot-pluggable SFP+ form factor
Support multi-gigabit data rates up to 10.5Gbps
Data rate backward compatible to 1Gbps
Low Power Consumption < 0.5W
Operating temperature 0 to 70 °C
RoHS 6 compliant

Application

10 Gigabit Ethernet
Fiber Channel
Data Center
Data Storage

Specification

P/N	Rate	Interface	Max. Distance
FXDAC-10GE-P-X	10G	SFP+ to SFP+	24AWG<10m, 30AWG<3m
FXDAC-25GE-P-X	25G	SFP28 to SFP28	26AWG<5m, 28AWG<3m, 30AWG<3m
FXDAC-40GE-P-X	40G	QSFP+ to QSFP+	26AWG<7m, 30AWG<3m
FXDAC-40GE-P-X	40G	QSFP+ to 4xSFP+	26AWG<7m, 30AWG<3m
FXDAC-100GE-P-X	100G	QSFP28 to QSFP28	26AWG<5m, 30AWG<3m
FXDAC-200GE-P-X	100G	QSFP56 to QSFP56	26AWG<3m,30AWG<1.5m
